Effect of chemicals and antagonists on the growth of Rhizoctonia solani (Kuhn) causing black scurf of potato (Solanum tuberosum L.)

Rhizoctonia solani is the cause of potato black scurf disease, which has become a serious hazard in the majority of India's potato-growing regions. The effectiveness of fungicides was verified in vitro for the per cent mycelial growth inhibition of Rhizoctonia solani. Monceren entirely inhibited the mycelial growth at 100 ppm as compared to MEMC and boric acid, which inhibited mycelial growth up to 81 per cent and 76 per cent, respectively at 100 ppm concentration. Among tested fungicides, mancozeb was least effective which checked 45.00 to 74.33 per cent of fungal growth, followed by hexaconazole (70.00 to 99.33%) and propiconazole (72.33 to 99.66%) relatively at 100 to 1000 ppm concentrations. Amongst the four bioagents, Trichoderma harzianum showed superior results, inhibiting mycelial growth by 71.11 percent, followed by T. viride (64.44%). Bacillus subtilis and Pseudomonas fluorescens, the bacterial bio-agents, showed the least effectiveness, inhibiting mycelial growth by 55.27 and 47.22 percent, respectively.

Illustrations explain the paper; charts are replotted from the paper's own table values.

AI-generated illustration

↗ Enlarge

Experimental Setup ComparisonClose ×

AI-generated conceptual illustration (Rhizoctonia solani fungus and potato tubers). It explains the idea and does not show study data.

Open full-size image ↗

Replotted from source data

↗ Enlarge

Growth Inhibition (%): T. harzianum vs T. viride vs P. fluorescence vs B. subtilisClose ×

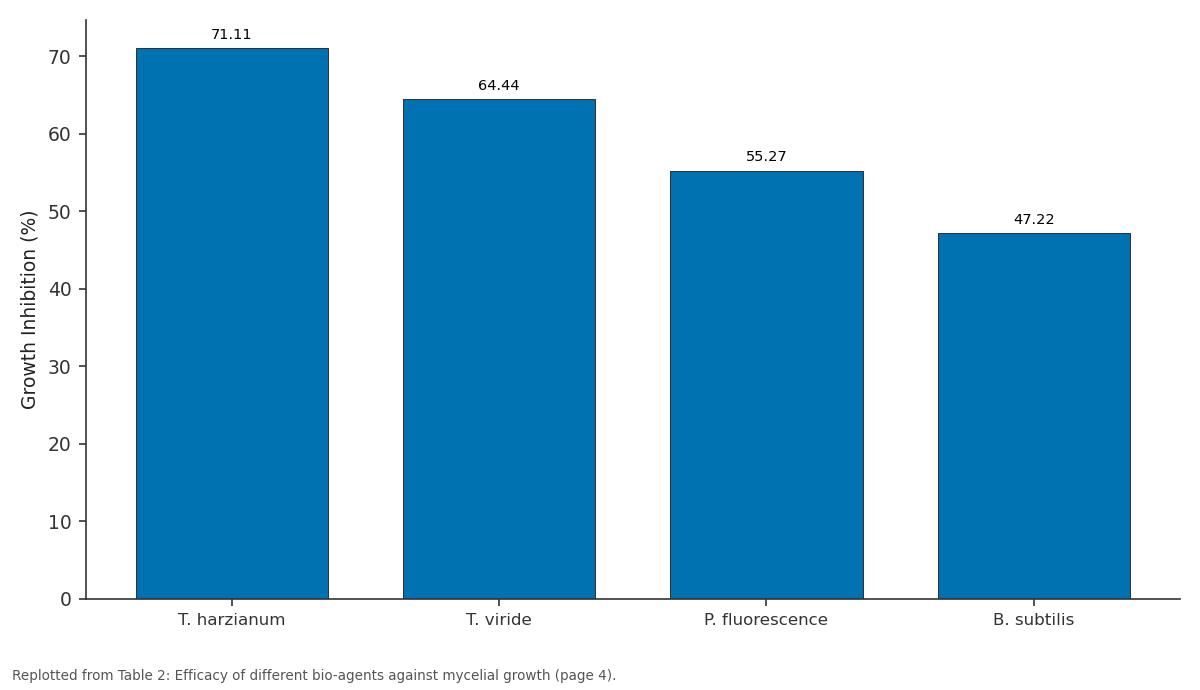

Replotted from Table 2 (page 4) of the original paper. Every bar is the paper's own table value.

Open full-size image ↗

Introduction

The fungus 'Rhizoctonia solani' attacks tubers, underground stems and stolons of potato (Solanum tuberosum L.). In potato, this disease may cause both qualitative & quantitative loss to the potato crop. In northern areas, where farmers frequently plant potato in cold soils, Rhizoctonia is a more stable problem. Rhizoctonia disease is characterized by poor standing, stunted plant growth, reduced tuber quantity and size, and deformed tubers. While stem canker causes quantitative losses due to stolon, sprout, and root infections, primarily in the early stages of the season, reducing tuber size and number, black scurf increases during plant senescence and is associated with the development of sclerotia on progeny tubers and their deformities. Poor standing, limited plant development, decreased tuber number and size, and malformed tubers are the hallmarks of Rhizoctonia disease. Black scurf increases during plant senescence and is linked to the development of sclerotia on progeny tubers and their deformities, whereas stem canker reduces tuber size and number through quantitative losses caused by stolon, sprout, and root infections, mostly in the early stages of the season. Black scurf of potato caused by isolates of AG-3 group does not physically damage tubers but affects their market value (Banville et al., 1996) [1] . R. solani is transmitted by infected seed tubers, providing a mechanism for its long-distance dispersal. Once existed in soil, the sclerotia and mycelium of the pathogen can then provide an additional source of primary inoculum. (Kumar et al., 2017) [14] . Xiao-Yu Zhang et al. (2014) [31] observed that a few hyphae might penetrate in the potato tuber epidermis and infect the internal tissue in field test which provides the basis for the tuber piece inoculation. On tuber surface, brownish to blackish irregular hard-masses of sclerotia were formed. Though these structures adhere firmly to the tuber skin, they are superficial and do not cause any injury, even in storage and help in spread of the disease from one season to the next. Disease intensity is not always associated with the reduction of yield. Potato black scurf disease was reported to cause marketable yield losses up to 30-50 % (Keiser, 2008) [10] .

Since there is no universally accepted inoculation technique or disease categorization system, there are few resistant sources of the Rhizoctonia pathogen in potato germplasms, therefore it is difficult to screen for and identify resistant potato cultivars and/or lines (Naz et al.,2008; Djébali and Belhassen, 2010) [21,4] . Therefore, chemical methods and antagonists can be used to manage disease. Among the several options for disease control are the application of fungicides and bio-agents. Numerous countries that produce potatoes have conducted extensive research on the chemical management of black scurf (Jeger et al., 1996,) [8] . Bioefficacy of different fungicides, i.e., Monceren 250 EC, Penflufen 240 FS, Emisan 6 FS and Carbendazim 50 WP, were evaluated against black scurf disease of potato by dip treatment on Kufri Bahar variety (Kumar and Raj, 2016) [13] . For the control of black scurf, the use of harmful organomercurial compounds was replaced with non-harmful ecofriendly chemical boric acid (Somani, 1988) [28] . Pencycuron affects the metabolic activity of Rhizoctonia solani and inhibits its further growth. Pencycuron and boric acid are the two chemicals which are regularly used by Indian farmers for the management of black scurf (Khurana et al., 2001) [11] . Many isolates of Trichoderma spp. have been reported to effectively inhibit soil-borne plant pathogenic fungus, including Fusarium spp., R. solani, Pythium spp., and Sclerotium rolfsii. (Samuels, 1996: Singh J.K et.al.,2017) [25,27] . R. solani isolates' mycelial growth is considerably inhibited by Trichoderma viride and Trichoderma harzianum (Hussain et al., 2014) [7] . Bacillus, Pseudomonas fluorescence, and actinomycetes are among the bacteria and fungi that have been used to suppress R. solani. Antagonistic bacteria, particularly those in the Bacillus genus, are among the most widely utilized biological agents to combat a variety of plant diseases (Elhamshary and Khattab, 2008) [6] including Rhizoctonia (Mizumotoet al., 2007) [19] . Bacillus strains are known to produce bioactive natural peptides that may have antifungal, antibacterial, and anti-enveloped viral properties. ( [15,9,3,22] . Moreover, endophytic plants can be colonized by Bacillus bacteria (Mahaffee and Kloepper, 1997) [16] , and these bacteria can create compounds that influence the growth of bacteria and fungi. (Stein, 2005) [29] . While P. fluorescens produces a group of antifungal metabolites like siderophores and various antibiotics like 2,4-diacetyl-phloroglucinol (2,4-DAPG) and phenazine-1 carboxylic acid that stop the fungus from growing further, the bacterial antagonist B. subtilis produces a wide range of antifungal compounds, including subtilin, subtilosin, TasA, mycobacillin, bacilysin, and even some enzymes that may break down the fungal cell wall (Berg et al., 2001) [2] . Therefore, it was suggested that the current study examine how well next generation fungicides work against Rhizoctonia solani and naturally occurring antagonists that are frequently found in soil ecosystems to ensure environmental safety.

Materials and Methods

Materials and Methods

Isolation and purification of Rhizoctonia solani isolates

As sclerotia of black scurf were gathered at harvest, potato tubers of the susceptible variety "Kufri Bahar" show typical symptoms. The black scurf-covered potato tuber peels were taken off, chopped into little pieces, and properly cleaned with sterile water to get rid of any dust, etc. After being purified using the single hyphal tip approach (Rangaswami and Mahadevan, 2004) [24] , the pathogen cultures were kept on PDA slants and refrigerated at 4°C for future research. Pathogen thus isolated from the samples were identified as Rhizoctonia solani Kuhn and confirmed through the available literature.

In vitro evaluation under laboratory conditions 2.2.1 Evaluation of chemicals/fungicides against

In vitro evaluation under laboratory conditions 2.2.1 Evaluation of chemicals/fungicides against

Rhizoctonia solani

Using the standard procedure of poison food technique as provided by Mayer (1962) [18] , the effectiveness of six chemicals/fungicides viz., boric acid, methoxy ethyl mercuric chloride (MEMC), mancozeb, monceren, hexaconazole, and propiconazole on the growth of Rhizoctonia solani was tested in vitro at four different concentrations, namely, 100, 250, 500, and 1000 ppm, on the radial growth inhibition of R. solani. Under lab conditions, the study employed a completely randomized design (CRD) with three replications for every fungicide.

Observations recorded

The colony diameter (mm) was measured every 24 hours until the control treatment's fungus had completely taken over the Petri plate's growth area. Using Vincent's equation (1947) [30] , the percentage inhibition of mycelial growth over control was determined.

Where, C= Radial growth of Rhizoctonia solani mycelium in control T= Radial growth of Rhizoctonia solani mycelium in treatment

Evaluation of antagonists against Rhizoctonia solani

The antagonists utilized in this investigation, which included Bacillus subtilis, Pseudomonas fluorescens, Trichoderma viride, and Trichoderma harzianum, were collected from the Department of Plant Pathology at CCS HAU, Hisar. They were evaluated using the dual culture approach (Morton and Stroube, 1955) [20] to determine their effectiveness against R. solani. Until the control plate reached full development (45.0 mm), the test pathogen's radial expansion toward the antagonists was evaluated in the dual culture assay. The formula from Vincent (1947)) [30] was used to determine the percentage inhibition of radial growth, as previously mentioned. (section 2.2.1.1).

Statistical analysis

The data of in vitro experiments was studied by using statistical package of programs OPSTAT (Sheoran, 2006) [26] . The factorial experiment in CRD was conducted for laboratory. Angular (arcsine) transformation was done for analysis of the per cent data in CRD design. Analysis of variance (ANOVA) in one way or two ways for the analysis of the data was used to calculate the critical difference (CD) and coefficient of variations (CV) for the significance of the treatments.

Results

The current study was conducted in vitro to assess several environmentally friendly management strategies against potato black scurf. In the Department of Plant Pathology at CCS Haryana Agricultural University in Hisar, Haryana, India, the study was conducted. Here are the findings from several laboratories regarding the control of Rhizoctonia solani, which causes potato black scurf.

Efficacy of different chemicals/ fungicides

Using the poisoned food technique, six fungicides viz.,boric acid, methoxy ethyl mercuric chloride (MEMC), mancozeb, monceren, hexaconazole, and propiconazole were tested in vitro at four different concentrations viz.,100, 250, 500, and 1000 ppm to determine how effective they were at stopping the radial growth of Rhizoctonia solani (section 2.2.1). Following the fifth day of incubation, the colony diameter was measured, and the percentage of R. solani mycelial growth inhibition for each fungicide concentration was computed. Results (Table 1) showed all fungicides inhibited R. solani's radial growth, with a significant decrease in growth as fungicide concentration increased. All six fungicides, however, differed in the degree of growth inhibition. Table 1's experimental results demonstrated unequivocally that, at a concentration of 100 ppm, the monceren fungicide completely inhibited mycelial growth up to 100 percent, followed by MEMC (81.0% inhibition). In contrast, boric acid, propiconazole 25%, hexaconazole 5%, and mancozeb 75% were responsible for 76.0, 72.3, 70.0, and 45.0 percent inhibition of Rhizoctonia solani mycelial. Boric acid decreased mycelial development 97.3%, whereas MEMC at 500 ppm concentration entirely inhibited it (100%). Boric acid and MEMC concentrations of 250 ppm showed an inhibition of 89.7% and 94.3%, respectively. Increasing concentrations (100-1000 ppm) enhanced growth inhibition of R. solani as across all fungicides. At 1000 ppm, all fungicides strongly inhibited R. solani's growth. Complete growth inhibition was observed with monceren 250 EC at 100 ppm, MEMC at 500 ppm, and boric acid, propiconazole 25%, and hexaconazole 5% at 1000 ppm. Mancozeb 75% was the least effective, with 74.33% inhibition, indicating its limited efficacy in checking radial growth of the fungus. The in vitro evaluation of the fungicides against the test fungus revealed monceren 250 EC and MEMC-6 FS as the most promising fungicides against R. solani. Boric acid, propiconazole 25%, and hexaconazole 5% showed intermediate efficacy, while mancozeb 75% was the least effective at all concentrations. Statistical analysis confirmed significant effects of fungicides, concentrations, and their interactions. Similar types of findings under in vitro were also found by Dutta and Kalha (2011) [5] while working with Rhizoctonia solani. They have observed that hexaconazole and propiconazole had inhibited the mycelial growth of the pathogen. Hexaconazol (Contaf) gave good result against R. solani under in vitro study (Rai et al., 2007) [23] . The same trend of results was found in the seed treatment with 3% boric acid and 3% Dithane M-45 which reduced the disease incidence of black scurf reported by Kiptoo et al., 2021 [12] .

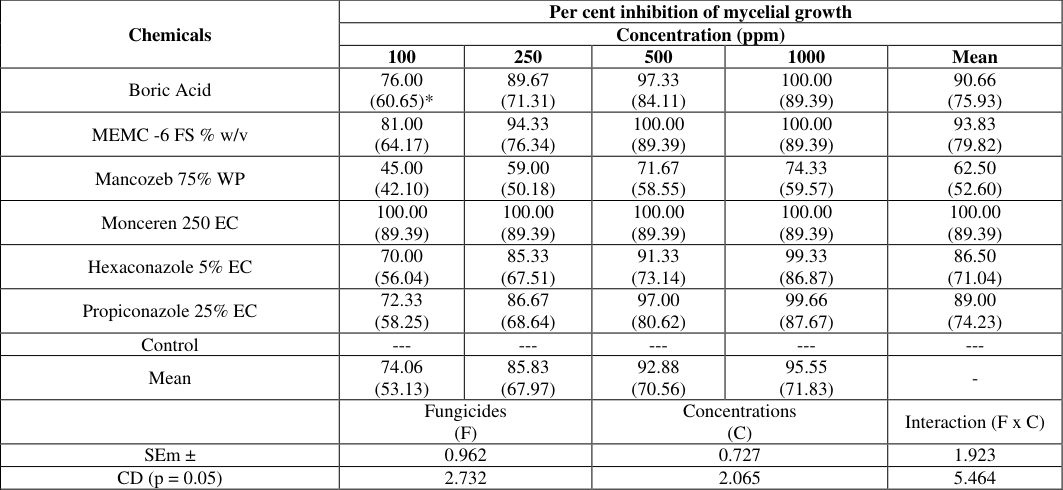

Chemicals	Per cent inhibition of mycelial growth	—	—	—	—
	Concentration (ppm)
	100	250	500	1000	Mean
Boric Acid	76.00 (60.65)*	89.67 (71.31)	97.33 (84.11)	100.00 (89.39)	90.66 (75.93)
MEMC -6 FS % w/v	81.00 (64.17)	94.33 (76.34)	100.00 (89.39)	100.00 (89.39)	93.83 (79.82)
Mancozeb 75% WP	45.00 (42.10)	59.00 (50.18)	71.67 (58.55)	74.33 (59.57)	62.50 (52.60)
Monceren 250 EC	100.00 (89.39)	100.00 (89.39)	100.00 (89.39)	100.00 (89.39)	100.00 (89.39)
Hexaconazole 5% EC	70.00 (56.04)	85.33 (67.51)	91.33 (73.14)	99.33 (86.87)	86.50 (71.04)
Propiconazole 25% EC	72.33 (58.25)	86.67 (68.64)	97.00 (80.62)	99.66 (87.67)	89.00 (74.23)
Control	---	---	---	---	---
Mean	74.06 (53.13)	85.83 (67.97)	92.88 (70.56)	95.55 (71.83)	-
	Fungicides (F)		Concentrations (C)		Interaction (F x C)
SEm ±	0.962		0.727		1.923
CD (p = 0.05)	2.732		2.065		5.464

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image

↗ Enlarge

Table 1Close ×

In vitro evaluation of different chemicals/fungicides against mycelial growth of R. solani

Open full-size image ↗

Original paper tableSource PDF · page 3 ↗

Efficacy of different bioagents

The antifungal activity of four bioagents viz., Trichoderma harzianum, T. viride, Bacillus subtilis and Pseudomonas fluorescens against Rhizoctonia solani was evaluated under in vitro conditions and results thus obtained are shown in table 2. The bioagents significantly inhibited R. solani's growth through overgrowth or inhibition zones. Both the Trichoderma spp. showed considerable antifungal activity by checking the radial growth of R. solani as compared to the bacterial antagonist B. subtilis and P. fluorescens. The inhibition of radial growth observed in T. harzianum (71.11%) was significantly higher to T. viride (64.44%). While the bacterial antagonist B. subtilis was able to inhibit radial growth up to 55.27 per cent and P. fluorescens inhibited 47.22 per cent radial growth of the test fungus. In comparison to T. viride, faster growth inhibition of the test fungus was obtained with T. harzianum. These results are in agreement with Malik et al. (2014) [17] and Hussain et al. (2014) [7] who demonstrated that T. harzianum revealed prominent antagonism against R. solani, followed by T. viride which significantly suppressed the mycelial growth of pathogen.

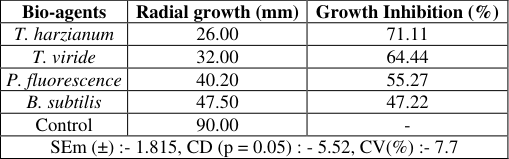

Bio-agents	Radial growth (mm)	Growth Inhibition (%)
T. harzianum	26.00	71.11
T. viride	32.00	64.44
P. fluorescence	40.20	55.27
B. subtilis	47.50	47.22
Control	90.00	-
SEm (±) :- 1.815, CD (p = 0.05) : - 5.52, CV(%) :- 7.7

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image

↗ Enlarge

Table 2Close ×

Efficacy of different bio-agents against mycelial growth

Open full-size image ↗

Original paper tableSource PDF · page 4 ↗

Conclusion

Efficacy of chemicals and bioagents were evaluated in vitro for their ability to reduce Rhizoctonia solani mycelial growth by a percentage. At 100 ppm, Monceren was the chemical that entirely prevented mycelial development, whereas Trichoderma harzianum was the most effective bioagent, decreasing mycelial growth by 71.11 per cent.

Acknowledgments:

The author acknowledges with appreciation the contributions of Dr. Anil Kumar, Ex-Professor and Head, Department of Plant Pathology, CCSHAU, Hisar, whose guidance, technical expertise and financial support were instrumental in the successful execution of this research.

1. Banville GJ, Carling DE, Otrysko BE. Rhizoctonia disease on potato. In: Sneh B, Jabaji-Hare S, Neate S, Dijst G, editors. Rhizoctonia species: Taxonomy, molecular biology, ecology, pathology and disease control. Dordrecht: Kluwer Academic; 1996. p. 321330.
2. Berg G, Fritze A, Roskot N, Small K. Evaluation of potential biocontrol rhizobacteria from different host plants of Verticillium dahliae Kleb. J Appl Microbiol. 2001;91:963-971.
3. Bizani D, Brandelli A. Characterization of a bacteriocin produced by a newly isolated Bacillus sp. strain 8A. J Appl Microbiol. 2002;93:512-519.
4. Djébali N, Belhassen T. Field study of the relative susceptibility of eleven potato (Solanum tuberosum L.) varieties and the efficacy of two fungicides against Rhizoctonia solani attack. Crop Prot. 2010;29:9981002.
5. Dutta U, Kalha CS. In vitro evaluation of fungicides, botanicals and bioagents against Rhizoctonia solani causing sheath blight of rice and their integration for effective management of the disease under field conditions. Plant Dis Res. 2011;26(1):14-19.
6. El-hamshary OIM, Khattab AA. Evaluation of antimicrobial activity of Bacillus subtilis and Bacillus cereus and their fusants against Fusarium solani. Res J Cell Mol Biol. 2008;2:24-29.
7. Hussain A, Awan MS, Khan SW, Anees M, Ali S, Abbas Q, et al. Bioefficacy of botanical extracts and bioagents against sclerotial isolates of Rhizoctonia solani. J Biodivers Environ Sci. 2014;4:370-380.
8. Jeger MJ, Hide GA, Van Den Boogert PHJF, Termorshuizen AJ, Van Baarlen P. Pathology and control of soil-borne fungal pathogens of potato. Potato Res. 1996;39:437-469.
9. Jing L, Yang Q, Zhao L, Zhang S, Wang Y, Zhao X. Purification and characterization of a novel antifungal protein from Bacillus subtilis strain B29. J Zhejiang Univ Sci B. 2009;10:264-272.
10. Keiser A. Rhizoctonia solani-a fungal disease with multiple symptoms: means of preventive and curative control. In: Potato Research for a Production of Quality. Information Day, February 2008, Changins. (French).
11. Khurana SMP, Thind TS, Mohan C. Diseases of potato and their management. In: Thind TS, editor. Diseases of fruits and vegetables and their management. New Delhi: Kanlayani Publisher; 2001. p. 237-265.
12. Kiptoo JJ, Abbas A, Bhatti AM, Usman HM, Shad MA, Umer M, et al. Rhizoctonia solani of potato and its management: a review. Plant Prot. 2021;5(3):157-169.
13. Kumar A, Kushal R. Evaluation of different fungicides against black scurf of potato caused by Rhizoctonia solani. Indian J Plant Prot. 2016;44(1):110-115.
14. Kumar M, Singh JK, Kumar S, Kumar A. A comprehensive overview on black scurf of potato. Int J Curr Microbiol Appl Sci. 2017;6(10):4981-4994.
15. Li J, Yang Q. Biological control of Fusarium wilt with an antagonistic strain of Bacillus subtilis. In: Yang Q, Yu ZN, editors. Study on Plant Pest and Diseases Biological Control and Biotechnology. Harbin: Heilongjiang Science Technology Press; 2005. p. 229236.
16. Mahaffee WF, Kloepper JW. Temporal changes in the bacterial communities of soil, rhizosphere and endorhiza associated with field grown cucumber (Cucumis sativus L.). Microb Ecol. 1997;34:210-223.
17. Malik O, Chohan S, Naqvi SAH. Occurrence of black scurf disease of potato in Multan (Punjab) along with its in vitro chemical and biotic elicitor mediated management. J Agric. 2014;6(9):134-143.
18. Mayer CR. Response of selected Rhizoctonia solani isolates to different soil chemical tests. Phytopathology. 1962;59:19.
19. Mizumoto S, Hirai M, Shoda M. Enhanced iturin A production by Bacillus subtilis and its effects on suppression of the plant pathogen Rhizoctonia solani. Appl Microbiol Biotechnol. 2007;75:1267-1274.
20. Morton DT, Stroube NH. Antagonistic and stimulatory effects of micro-organism upon Sclerotium rolfsii. Phytopathology. 1955;45:419-420.
21. Naz F, Rauf CA, Abbasi N, Irfan-Ul-Haque, Ahmad I. Influence of inoculum levels of Rhizoctonia solani and susceptibility on new potato germplasm. Pak J Bot. 2008;40:2199-2209.
22. Ongena M, Henry G, Thonart P. The roles of cyclic lipopeptides in the biocontrol activity of Bacillus subtilis. In: Gisi U, Chet L, Guillino ML, editors. Recent Developments in Management of Plant Diseases. Plant Pathology in the 21st Century, vol. 1. 2009. p. 59-69.
23. Rai JP, Dubey KS, Kumar. In vitro screening of different fungicides and antifungal antibiotics against Rhizoctonia solani causing aerial blight of soybean. J Plant Dis Sci. 2007;2(1):54-56.
24. Rangaswami G, Mahadevan A. Disease of crop plants in India. New Delhi: Prentice-Hall of India Pvt. Ltd.; 2004. p. 507.
25. Samuels GJ. Trichoderma: a review of biology and systematics of the genus. Mycol Res. 1996;100:923935.
26. Sheoran OP. Online statistical analysis tool (OPSTAT) [Internet]. Hisar: CCS HAU; 2006 [cited 2025 Jun 25]. Available from: http://www.hau.ernet.in/about/opstat.php
27. Singh JK, Kumar M, Kumar S, Kumar A, Mehta N. Effect of chemicals and antagonists on growth and sporulation of Fusarium oxysporum causing wilt of chilli (Capsicum annuum L.). Int J Chem Stud. 2017;5(5):2175-2181.
28. Somani AK. Control of black scurf (Rhizoctonia solani) and common scab (Streptomyces scabies) of potato (Solanum tuberosum) with boric acid. Indian J Agric Sci. 1988;58:693-698.
29. Stein T. Bacillus subtilis antibiotics: structure, syntheses and specific functions. Mol Microbiol. 2005;56:845-857.
30. Vincent JM. Distortion of fungal hyphae in presence of certain inhibitors. Nature. 1947;159:850.
31. Xiao YZ, Xiao XY, Zhuo Y, Yu-Feng X, Qi LP. A simple method based on laboratory inoculum and field inoculums for evaluating potato resistance to black scurf caused by Rhizoctonia solani. Breed Sci. 2014;64(2):156-163.
