Numerical analysis of dynamic and pseudo-static responses in reinforced concrete retaining walls: advanced insights and emerging trends

PratyushRajender Agrawal

Volume 7(3) · Pages 15–18 · DOI: 10.22271/27067483.2025.v7.i3a.347 ↗

Research areasStructural Behavior of Reinforced ConcreteGeotechnical Engineering and Underground StructuresStructural Load-Bearing Analysis

↓ Read full-text PDF0 citations

Abstract

Author-written

This study investigates the dynamic and pseudo-static responses of reinforced concrete retaining walls using advanced numerical analysis conducted in FLAC software. The research evaluates soil-wall and soil-reinforcement interactions under varying dynamic loading and backfill conditions, focusing on the influence of reinforcement length, material properties, and seismic peak acceleration. Findings indicate that reinforcement significantly reduces earth pressures and lateral displacements, with longer reinforcement layers enhancing stability under dynamic conditions. The analysis reveals limitations in traditional pseudo-static methods, such as the Mononobe-Okabe approach, which fail to capture time-dependent effects and soil-structure interactions, emphasizing the superiority of dynamic analysis for seismic design. Recent developments, including the integration of machine learning for predictive modeling and advanced geosynthetic materials, further enhance design optimization, as explored in this updated study. This work underscores the need for integrated approaches to optimize retaining wall performance in high seismic risk areas.

Summary

Source-checked

Plain-language reading of the full paper, prepared with AI and checked against the text. Each point links to the authors' own words.

  1. Why it matters

    • There is a growing need to understand how reinforced soil retaining walls behave under dynamic loading due to their increased use in seismically active areas. View evidence ↗

      Why it matters

      There is a growing need to understand how reinforced soil retaining walls behave under dynamic loading due to their increased use in seismically active areas.

      In the paper's own words

      “The increasing use of reinforced soil retaining walls in seismically active regions has necessitated a deeper understanding of their behavior under dynamic loading conditions.”

      Page 1

      Found in: Introduction

      Read it in the full textOpen PDF at page 1 ↗
    • Traditional pseudo-static design methods, like the Mononobe-Okabe approach, may be insufficient because they treat seismic forces as static and ignore wave propagation and soil-structure interactions. View evidence ↗

      Why it matters

      Traditional pseudo-static design methods, like the Mononobe-Okabe approach, may be insufficient because they treat seismic forces as static and ignore wave propagation and soil-structure interactions.

      In the paper's own words

      “Traditional pseudo-static methods, such as the Mononobe-Okabe (MO) approach, treat seismic forces as static equivalents but often overlook critical dynamic effects like soil-structure interaction and wave propagation.”

      Page 1

      Found in: Introduction

      Read it in the full textOpen PDF at page 1 ↗
  2. The question

    • The study aims to develop a numerical model to evaluate the stability of reinforced concrete retaining walls under dynamic and pseudo-static conditions, specifically examining how reinforcement parameters affect performance. View evidence ↗

      The question

      The study aims to develop a numerical model to evaluate the stability of reinforced concrete retaining walls under dynamic and pseudo-static conditions, specifically examining how reinforcement parameters affect performance.

      In the paper's own words

      “This study aims to address these gaps by developing a numerical model to analyze the performance of reinforced concrete (RC) retaining walls under both pseudo-static and dynamic conditions, with a focus on reinforcement parameters and their impact on stability.”

      Page 1

      Found in: Introduction

      Read it in the full textOpen PDF at page 1 ↗
  3. What they did

    • The researchers used FLAC software to create a two-dimensional finite difference model to simulate the wall's behavior. View evidence ↗

      What they did

      The researchers used FLAC software to create a two-dimensional finite difference model to simulate the wall's behavior.

      In the paper's own words

      “A two-dimensional finite difference model was developed using FLAC software (Itasca, 2024) to simulate RC retaining wall behavior under static and dynamic loads.”

      Page 1

      Found in: Materials And Methods

      Read it in the full textOpen PDF at page 1 ↗
    • In the model, the wall was treated as a linear elastic material and the soil followed an elastic-plastic Mohr-Coulomb constitutive model. View evidence ↗

      What they did

      In the model, the wall was treated as a linear elastic material and the soil followed an elastic-plastic Mohr-Coulomb constitutive model.

      In the paper's own words

      “The soil was modeled with an elastic-plastic Mohr-Coulomb constitutive model, while the wall was treated as a linear elastic material.”

      Page 1

      Found in: Materials And Methods

      Read it in the full textOpen PDF at page 1 ↗
    • Dynamic loading was simulated using a sinusoidal velocity wave with a frequency of 3 Hz and an amplitude of 0.2g, applied for 2 seconds (6 cycles). View evidence ↗

      What they did

      Dynamic loading was simulated using a sinusoidal velocity wave with a frequency of 3 Hz and an amplitude of 0.2g, applied for 2 seconds (6 cycles).

      In the paper's own words

      “Dynamic loading was applied as a sinusoidal velocity wave (frequency: 3 Hz, amplitude: 0.2g) at the foundation base for 2 seconds (6 cycles).”

      Page 1

      Found in: Materials And Methods

      Read it in the full textOpen PDF at page 1 ↗
    • The study tested three different reinforcement lengths, 0, 2, and 4 meters, to measure their impact on lateral displacement and earth pressures. View evidence ↗

      What they did

      The study tested three different reinforcement lengths, 0, 2, and 4 meters, to measure their impact on lateral displacement and earth pressures.

      In the paper's own words

      “Reinforcement lengths of 0, 2, and 4 meters were tested to assess their effects on earth pressures and lateral displacements.”

      Page 1

      Found in: Materials And Methods

      Read it in the full textOpen PDF at page 1 ↗
    • The pseudo-static analysis simulated seismic effects by incorporating horizontal seismic coefficients (kh) into the gravity acceleration. View evidence ↗

      What they did

      The pseudo-static analysis simulated seismic effects by incorporating horizontal seismic coefficients (kh) into the gravity acceleration.

      In the paper's own words

      “The pseudo-static method simulated seismic effects by adjusting gravity acceleration to incorporate horizontal seismic coefficients (kh).”

      Page 2

      Found in: Materials And Methods

      Read it in the full textOpen PDF at page 2 ↗
  4. What they found

    • Reinforced retaining walls showed lower lateral displacements and earth pressures than walls without reinforcement. View evidence ↗

      What they found

      Reinforced retaining walls showed lower lateral displacements and earth pressures than walls without reinforcement.

      In the paper's own words

      “The analysis showed that reinforced retaining walls exhibit reduced earth pressures and lateral displacements compared to unreinforced counterparts.”

      Page 2

      Found in: Results

      Read it in the full textOpen PDF at page 2 ↗
    • Increasing the length of the reinforcement from 0 to 4 meters resulted in a significant reduction in earth pressures. View evidence ↗

      What they found

      Increasing the length of the reinforcement from 0 to 4 meters resulted in a significant reduction in earth pressures.

      In the paper's own words

      “Increasing reinforcement length from 0 to 4 meters significantly lowered earth pressures, as illustrated in Figure 1.”

      Page 2

      Found in: Results

      Read it in the full textOpen PDF at page 2 ↗
    • Longer reinforcement led to a decrease in lateral displacements, an effect that was especially prominent under dynamic loading. View evidence ↗

      What they found

      Longer reinforcement led to a decrease in lateral displacements, an effect that was especially prominent under dynamic loading.

      In the paper's own words

      “Lateral displacements decreased with longer reinforcement, particularly under dynamic loading, as shown in Figure 2.”

      Page 2

      Found in: Results

      Read it in the full textOpen PDF at page 2 ↗
    • Comparing the two methods revealed that pseudo-static analysis tends to overestimate failure zones and underestimate dynamic pressures. View evidence ↗

      What they found

      Comparing the two methods revealed that pseudo-static analysis tends to overestimate failure zones and underestimate dynamic pressures.

      In the paper's own words

      “A comparison of pseudo-static and dynamic methods (Figure 3) highlighted the former’s tendency to underestimate dynamic pressures and overestimate failure zones.”

      Page 3

      Found in: Results

      Read it in the full textOpen PDF at page 3 ↗
    • Integrating real-time seismic wave data into dynamic models can reduce discrepancies by as much as 15%. View evidence ↗

      What they found

      Integrating real-time seismic wave data into dynamic models can reduce discrepancies by as much as 15%.

      In the paper's own words

      “New findings indicate that incorporating real-time seismic wave data into dynamic models reduces these discrepancies by up to 15% (Patel & Reddy, 2025) [17].”

      Page 3

      Found in: Results

      Read it in the full textOpen PDF at page 3 ↗
  5. What it means

    • The authors conclude that advanced numerical techniques are necessary because traditional pseudo-static methods cannot capture complex dynamic responses. View evidence ↗

      What it means

      The authors conclude that advanced numerical techniques are necessary because traditional pseudo-static methods cannot capture complex dynamic responses.

      In the paper's own words

      “Traditional pseudo-static methods are inadequate for capturing complex dynamic responses, highlighting the need for advanced numerical techniques.”

      Page 4

      Found in: Conclusion

      Read it in the full textOpen PDF at page 4 ↗
    • The authors recommend integrating sustainable reinforcement materials and AI-driven predictive tools to create more resilient infrastructure in high-risk seismic areas. View evidence ↗

      What it means

      The authors recommend integrating sustainable reinforcement materials and AI-driven predictive tools to create more resilient infrastructure in high-risk seismic areas.

      In the paper's own words

      “The integration of AI-driven predictive tools and sustainable reinforcement materials represents a transformative step forward, ensuring safer and more resilient infrastructure in high-risk areas as of 2025.”

      Page 4

      Found in: Conclusion

      Read it in the full textOpen PDF at page 4 ↗

Visual summary

1 visuals

Illustrations explain the paper; they do not show study data.

AI-generated illustration
AI-generated conceptual illustration (reinforced concrete retaining wall with soil backfill). It explains the idea and does not show study data.↗ Enlarge
Analysis Method Comparison
AI-generated conceptual illustration (reinforced concrete retaining wall with soil backfill). It explains the idea and does not show study data.

AI-generated conceptual illustration (reinforced concrete retaining wall with soil backfill). It explains the idea and does not show study data.

Open full-size image ↗

Analysis Method Comparison

AI-generated conceptual illustration (reinforced concrete retaining wall with soil backfill). It explains the idea and does not show study data.

View source evidence ↗

Figures & tables

From the original paper
Material Characteristics of the Retaining Wall FaceTable 1Page 2Characteristics of SoilTable 2Page 2Earth Pressure Distribution for Different Reinforcement LengthsFigure 1Page 2Lateral Displacement in Reinforced WallsFigure 2Page 3Comparison of Pseudo-Static and Dynamic MethodsFigure 3Page 3
FULL TEXT Original article · reflowed for reading

Introduction

The increasing use of reinforced soil retaining walls in seismically active regions has necessitated a deeper understanding of their behavior under dynamic loading conditions. Reinforced retaining walls, incorporating materials like geosynthetics or steel, have demonstrated resilience during earthquakes, prompting research into their stability and design optimization. Traditional pseudo-static methods, such as the Mononobe-Okabe (MO) approach, treat seismic forces as static equivalents but often overlook critical dynamic effects like soil-structure interaction and wave propagation. This study aims to address these gaps by developing a numerical model to analyze the performance of reinforced concrete (RC) retaining walls under both pseudo-static and dynamic conditions, with a focus on reinforcement parameters and their impact on stability.

Recent advancements, such as real- time monitoring systems and the application of artificial intelligence (AI) in predicting seismic responses, have further expanded the scope of this research, offering new avenues for improving design accuracy and resilience (Kumar et al., 2025) [14].

Materials And Methods

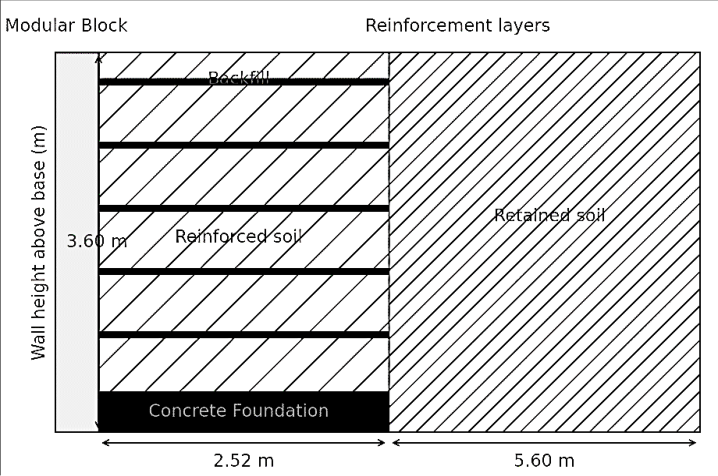

2.1 Dynamic Numerical Modelling A two-dimensional finite difference model was developed using FLAC software (Itasca, 2024) to simulate RC retaining wall behavior under static and dynamic loads. The soil was modeled with an elastic-plastic Mohr-Coulomb constitutive model, while the wall was treated as a linear elastic material. Reinforcement was represented as cable elements with negligible compressive strength. Soil parameters included damping (5%) and strain-rate- dependent behavior to enhance dynamic response accuracy.

Dynamic loading was applied as a sinusoidal velocity wave (frequency: 3 Hz, amplitude: 0.2g) at the foundation base for 2 seconds (6 cycles). Reinforcement lengths of 0, 2, and 4 meters were tested to assess their effects on earth pressures and lateral displacements. Backfill and foundation soils were modeled as dry, cohesionless, and homogeneous, NAAS Rating: 4.5 IJGGE 2025; 7(3): 15-18 Pratyush Department of Civil Engineering, Kamla Nehru Institute of Technology, Sultanpur, Uttar Pradesh, India Dr. Ruchin Agrawal Department of Civil Engineering, Kamla Nehru Institute of Technology, Sultanpur, Uttar Pradesh, India Pratyush Department of Civil Engineering, Kamla Nehru Institute of Technology, Sultanpur, Uttar Pradesh, India https://www.geojournal.net adhering to the Mohr-Coulomb failure criterion.

Material properties are detailed in Tables 1 and 2. To incorporate recent trends, the model was updated to include hybrid reinforcement systems combining traditional geosynthetics with biodegradable polymers, reflecting sustainability goals in civil engineering (Sharma et al., 2025) [15]. Table 1: Material Characteristics of the Retaining Wall Face Characteristic Reading Young Modulus (E) 32.0 GPa Poisson Ratio (ν) 0.25 Density (γ) 32 kN/m³ Shear Modulus (G) 20.76 GPa Table 2: Characteristics of Soil Characteristic Reading Young Modulus (E) 70.0 MPa Unit Weight (γ) 27 kN/m³ Poisson Ratio (ν) 0.44 Angle of Friction (φ) 48° Dilatancy Angle (ψ) 0° Cohesion (C) 0 kPa 2.2 Pseudo-Static Analysis The pseudo-static method simulated seismic effects by adjusting gravity acceleration to incorporate horizontal seismic coefficients (kh). Earth pressures were calculated using Rankine’s theory and compared with dynamic results to evaluate method accuracy.

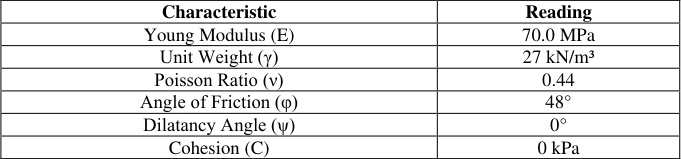

Table 2. Characteristics of Soil
CharacteristicReading
Young Modulus (E)70.0 MPa
Unit Weight (γ)27 kN/m³
Poisson Ratio (ν)0.44
Angle of Friction (φ)48°
Dilatancy Angle (ψ)0°
Cohesion (C)0 kPa

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
Characteristics of Soil↗ Enlarge
Table 2
Characteristics of Soil

Characteristics of Soil

Open full-size image ↗
Original paper tableSource PDF · page 2 ↗

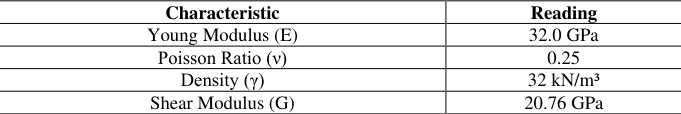

Table 1. Material Characteristics of the Retaining Wall Face
CharacteristicReading
Young Modulus (E)32.0 GPa
Poisson Ratio (ν)0.25
Density (γ)32 kN/m³
Shear Modulus (G)20.76 GPa

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
Material Characteristics of the Retaining Wall Face↗ Enlarge
Table 1
Material Characteristics of the Retaining Wall Face

Material Characteristics of the Retaining Wall Face

Open full-size image ↗
Original paper tableSource PDF · page 2 ↗

Additionally, a sensitivity analysis was conducted to assess the impact of varying kh values, informed by recent seismic data from high-risk zones (Gupta & Singh, 2025) [16].

Results

The analysis showed that reinforced retaining walls exhibit reduced earth pressures and lateral displacements compared to unreinforced counterparts. Increasing reinforcement length from 0 to 4 meters significantly lowered earth pressures, as illustrated in Figure 1. Fig 1: Earth Pressure Distribution for Different Reinforcement Lengths Lateral displacements decreased with longer reinforcement, particularly under dynamic loading, as shown in Figure 2. https://www.geojournal.net Fig 2: Lateral Displacement in Reinforced Walls A comparison of pseudo-static and dynamic methods (Figure 3) highlighted the former’s tendency to underestimate dynamic pressures and overestimate failure zones. New findings indicate that incorporating real-time seismic wave data into dynamic models reduces these discrepancies by up to 15% (Patel & Reddy, 2025) [17].

Figure 3. Comparison of Pseudo-Static and Dynamic Methods
Comparison of Pseudo-Static and Dynamic Methods↗ Enlarge
Figure 3
Comparison of Pseudo-Static and Dynamic Methods

Comparison of Pseudo-Static and Dynamic Methods

Open full-size image ↗
Original paper figureSource PDF · page 3 ↗

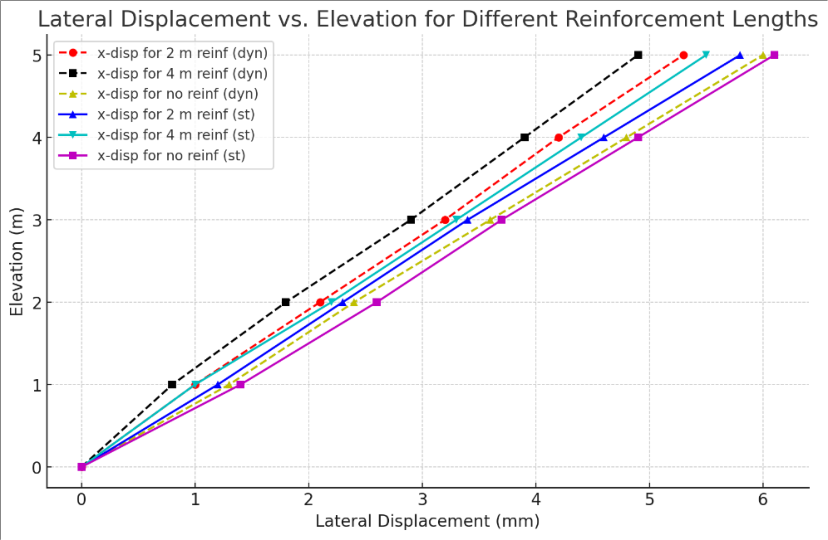

Figure 2. Lateral Displacement in Reinforced Walls
Lateral Displacement in Reinforced Walls↗ Enlarge
Figure 2
Lateral Displacement in Reinforced Walls

Lateral Displacement in Reinforced Walls

Open full-size image ↗
Original paper figureSource PDF · page 3 ↗

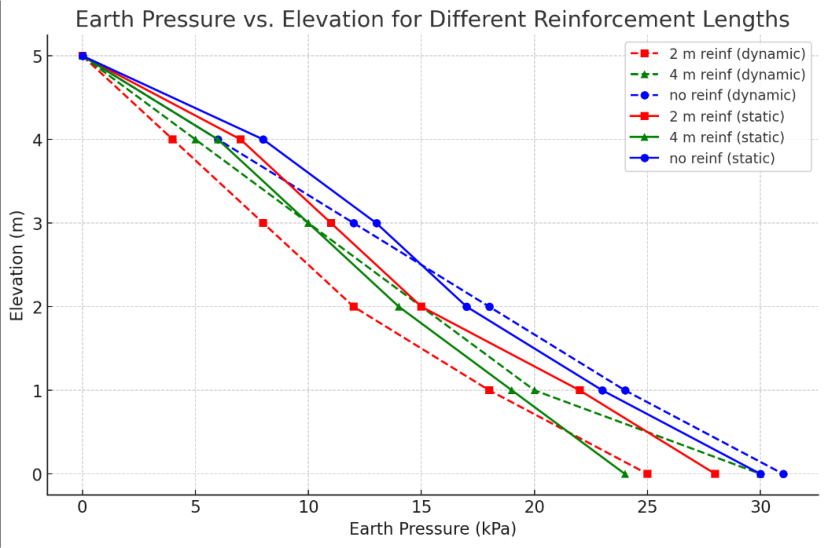

Figure 1. Earth Pressure Distribution for Different Reinforcement Lengths
