An insight into the phenotypic correlation and path analysis for yield and yield contributing traits in the F2 segregating population of okra (Abelmoschus esculentus (L.) Moench)

Okra [Abelmoschus esculentus (L.) Moench] is a crop predominantly grown in tropical and subtropical regions. An experiment was conducted to assess the relationship between various traits influencing crop yield and their direct and indirect effects on yield. This study analyzed the F2 segregating population of the cross OK-2017-006 x Pusa A4 during the summer of 2023 at the Department of Biotechnology and Crop Improvement, College of Horticulture, Bengaluru. The correlation analysis indicated that plant height, number of branches per plant, number of nodes on the main stem, stem girth, fruit diameter, and the number of fruits per plant exhibited a significant and positive correlation with total yield per plant. However, a significant negative correlation was observed for days to the first flowering with total yield per plant. Path coefficient analysis further revealed that the number of fruits per plant and average fruit weight had strong positive direct effects on yield per plant. Therefore, these quantitative traits could be valuable in developing selection indices for improving okra yield.

Illustrations explain the paper; they do not show study data.

AI-generated illustration

↗ Enlarge

Photosynthetic Pathway to YieldClose ×

AI-generated conceptual illustration (okra plants (Abelmoschus esculentus)). It explains the idea and does not show study data.

Open full-size image ↗

Introduction

Okra, scientifically known as Abelmoschus esculentus (L.) Moench is an annual vegetable crop that primarily undergoes often cross-pollination. In India, it is commonly called Bhendi and belongs to the class Dicotyledonae, order Malvaceae. It is the only vegetable of significant importance within the Malvaceae family (Schippers 2000) [26] and is believed to have originated in Tropical Africa. The genus Abelmoschus exhibits notable variation in chromosome number and ploidy levels among different species. The lowest chromosome number reported is 2n=56 for Abelmoschus angulosus (Ford 1938) [7] , while the highest, 2n=200, has been observed in Abelmoschus manihot var. caillei (Singh and Bhatnagar 1975) [29] . Okra is mainly cultivated during the spring-summer and rainy seasons for its tender green fruits in tropical, subtropical, and Mediterranean climates worldwide (Hammon and Van Stoles, 1989) [8] . The crop is in high commercial demand due to its exceptional nutritional content, particularly rich in vitamin C, calcium, and iron. Okra is highly valued in horticulture, with substantial export potential. In India alone, it covers an extensive cultivation area of 546 million hectares, producing 6.7 million metric tons annually, with a productivity of 12.27 tons per hectare (Anon., 2022) [3] . Yield in okra is a quantitative trait influenced by multiple genes and environmental factors. The success of any selection program in segregating generations depends on understanding the nature and extent of the correlation between independent and dependent variables, allowing for the simultaneous selection of multiple traits to enhance total fruit yield (Yogita et al., 2023) [35] . Studying correlation alongside path coefficient analysis, which divides the correlation into direct and indirect effects of contributing traits, is highly beneficial (Rahevar et al., 2023) [21] . With this in mind, the present investigation was undertaken to examine the nature and association of traits concerning fruit yield and its components, as well as the direct and indirect path coefficients of independent variables on fruit yield in the F2 segregating population of the cross OK-2017-006 x Pusa A4.

Materials and Methods

This study focusing on correlation and path analysis of yield and yield-related traits in F2 segregating population of okra was conducted at Research Block, Department of Biotechnology and Crop Improvement, College of Horticulture, Bengaluru during the summer season of 2023. The experimental materials consisted of the 426 F2 segregating progenies obtained selling of the F1 hybrid OK-2017-006 x Pusa A4. The F2 population was evaluated along with their parents, F1, and commercial check (Radhika). The seeds were sown with a spacing of 60 x 30 cm by adopting a standard package of practices and evaluated in an unreplicated trail. The observations were recorded on every plant in the F2 segregating population for 13 traits as per the DUS guidelines by PPV&FRA. The characters studied are depicted below.

• Plant height (cm): The height of the plant was measured in centimeters from ground level to the tip of the main shoot at 90 days after sowing. • Internodal length (cm): The length of the inter-node was measured using a scale on the 8th to 9th node from the bottom of the main stem and recorded in centimeters.

• Number of branches per plant:

The number of fruiting branches arising from the main stem above the ground level was recorded 90 days after sowing. • Number of nodes on the main stem: The number of nodes on the main stem was counted at 90 days after sowing. • Stem girth (cm): Stem girth was measured at 10 cm above ground level at 60 days after sowing by using a vernier caliper. • Days to first flowering: The number of days taken from the date of sowing to the time of first flower opening was recorded and days to early flowering were calculated.

• Number of ridges on fruit surface:

The number of ridges present on the fruit surface was recorded at the edible maturity stage and the average of five fruits was worked out. • Fruit length (cm): The length of the fruit was measured from the base of the fruit (basal cap) to its tip at the edible maturity stage. It is expressed in centimeters, and the average of five fruits was worked out.

The diameter of the fruit was measured 3 mm away from the fruit base (basal cap) at the edible maturity stage by using vernier calipers and recorded in millimeters. The average of five fruits was worked out.

• Number of seeds per fruit:

The number of seeds per fruit was recorded after the crop was harvested and dried.

• Average fruit weight (g): The average fruit weight was calculated by adding the weight of fruits, dividing by the total number of fruits, and expressing it as grams per fruit.

• Number of fruits per plant:

The number of fruits per plant was recorded during the full range of harvesting (added all pickings) up to the near maturity stage. • Total yield per plant (g): Yield per plant was computed by adding the fruit weight of all the pickings in each plant and expressed in grams per plant.

The correlation coefficient among all trait combinations at a phenotypic level was estimated according to the formula given by Al-Jibouri et al. (1958) [2] . Path coefficient analysis was carried out as given by Wright (1921) [33] and Dewey and Lu (1959) [6] . R software and packages are used for data visualization and correlation analysis (Version 0.92), (Wei and Simko, 2021) [32] .

Phenotypic correlation coefficient (rp)

Where, rp(xy) = phenotypic correlation coefficient between characters 'x' and 'y' Covp (xy) = phenotypic covariance of character 'x' and 'y' σ 2 p (x) = phenotypic variance of character 'x' σ 2 p (y) = phenotypic variance of character 'y'

Test of significance of correlation between the considered traits was carried out by comparing correlation coefficients-'r' value at n-2 degree of freedom with the table values (Fisher and Yates, 1963) at (n-2) degrees of freedom at 5% and 1% level where "n"' denotes the total number of pairs of observations used in the calculation.

Where n is the number of pairs of observations. If the calculated value is greater than the tabulated value at (n-2) degrees of freedom at a given probability level, the coefficient of correlation is considered significant. Path coefficient analysis Path coefficient analysis was carried out independently to know both the direct and indirect effects of the important component traits on yield, as suggested by Wright (1921) [33] and was illustrated by Dewey and Lu (1959) [6] .

The following set of simultaneous equations were formed and solved for estimating various direct and indirect effects. The residual effect (r) was computed as follows.

Have suggested scales for path coefficient analysis. 1) (Figure 1); and days to first flowering exhibited significant and negative correlation (-0.19) with total yield per plant suggesting that single plant selections can be practiced in F2 and advanced generations with these traits which lead to improvement in yield. These findings are in accordance with the reports of Alam et al.

↗ Enlarge

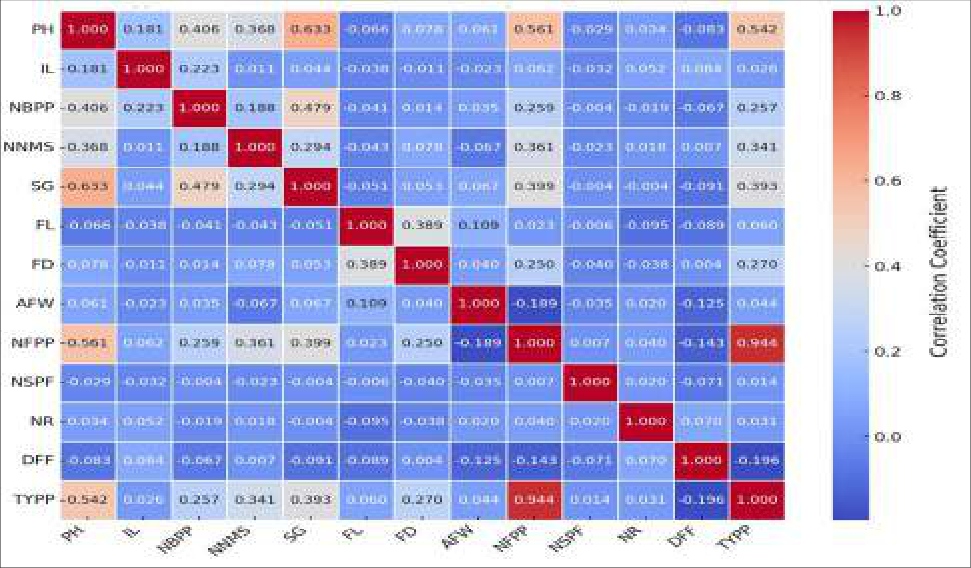

Figure 1Close ×

Here is the heatmap showing the phenotypic correlation coefficients among thirteen traits in the F2 population of the cross OK-2017-006 ×

Open full-size image ↗

Original paper figureSource PDF · page 4 ↗

(2020) [1] , Rana et al. (2020) [22] , Sravanthi et al. (2021) [30] , Saleem et al. (2023) [25] and Shinde et al. (2023) [28] for plant height and Shinde et al. (2023) [28] for the number of nodes on main stem and Saleem et al. (2023) [25] for stem girth; Alam et al. (2020) [1] for number of branches per plant; Jadhav et al. (2022) [9] , Nbeaa et al. (2023) [16] and Saleem et al. (2023) [25] for fruit diameter, Alam et al. (2020) [1] , Rana et al. (2020) [22] , Sravanthi et al. (2021) [30] , Saleem et al.

(2023) [25] , Shinde et al. (2023) [28] and Nbeaa et al. (2023) [16] for fruit length, average fruit weight and number of fruits per plant, Sravanthi et al. (2021) [30] , Jadhav et al. (2022) [9] and Nbeaa et al. (2023) [16] for days to first flowering.

Path coefficient analysis

The main goal of breeder is to have traits with minimum defects while maximizing production potential. While some of them have a direct impact on yield, others do so indirectly through the developmental behavior of other traits. Thus, it is preferable to comprehend the direct and indirect effects of other factors on yield. The relative importance of each feature has been determined and the total number of characteristics used in selection programs has been limited through the use of path analysis. Path coefficient analysis in the F2 segregating population of the cross revealed that the maximum direct contribution to total yield per plant was made by the number of fruits per plant (0.99) and average fruit weight (0.23). (Table . 2). These findings are in line with the results obtained by Raval et al. (2019) [23] , Pawar et al. (2020) [20] , Rana et al. (2020) [22] , Rynjah et al. (2020) [24] , Karmata et al. (2023) [10] , Lal., (2023) [13] , Nayak et al.

(2023) [15] which indicated that the considerable improvement may be brought about by selecting genotypes with more number of fruits per plant followed and average fruit weight. Further, these traits also had a significantly positive correlation with total yield per plant and positive inter-correlation among themselves. Correlation analysis revealed that traits such as plant height, number of branches per plant, number of nodes on the main stem, stem girth, fruit length, fruit diameter, average fruit weight, and the number of fruits per plant demonstrated a significant and positive correlation with total fruit yield per plant suggesting these are the key selection traits for yield improvement in Okra. The positive correlation effect of these traits will be attributed to reasons such as an increased number of branches per plant and a number of nodes on the main stem (Figure 2) consequently resulting in a higher leaf count per plant this enhances photosynthetic activity which leads to the accumulation of photosynthetic materials and higher amount of photosynthates move from the source to the sink (Shah, 2019) [27] results in a positive effect on fruit length and fruit diameter, average fruit weight, more number of fruit production per plant results in increased total yield per plant (Lakshmi et al., 2015) [12] . Conversely, days to first flowering exhibited a significant negative association with total fruit yield. This implies when plants produce early flowering it will produce fruits for a longer fruiting duration. Therefore, these traits may be crucial for enhancing fruit yield in okra. Path analysis further indicated that the trait number of fruits per plant followed by average fruit weight had the strongest direct positive effect on total fruit yield per plant.

↗ Enlarge

Figure 2Close ×

Plants expressing significant and positive correlated traits a. Plant showing short internodal length and more number of internodes. b.

Open full-size image ↗

Original paper figureSource PDF · page 4 ↗

Conclusion

This study evaluated the relationships between 13 key traits and their impact on yield in an F2 segregating population of okra (Abelmoschus esculentus (L.) Moench), comprising 426 individuals. The results revealed that traits such as plant height, number of branches per plant, number of nodes on the main stem, stem girth, fruit length, fruit diameter, average fruit weight, number of fruits per plant, and days to first flowering significantly influenced yield. These findings suggest that selecting these traits can be an effective strategy to improve fruit yield in okra breeding programs.

Acknowledgement

AcknowledgmentsWe thank the College of Horticulture, Bengaluru. Special thanks to the field staff for their assistance in crop production.

Figures and tables from the paper

Traits	PH	IL	NBPP	NNMS	SG	FL	FD	AFW	NFPP	NSPF	NR	DFF	TYPP
PH	1.000	0.181**	0.406**	0.368**	0.633**	-0.066	0.078	0.061	0.561**	-0.029	0.034	-0.083	0.542**
IL		1.000	0.223**	0.011NS	0.044NS	-0.038	-0.011	-0.023	0.062	-0.032	0.052	0.084	0.026
NBPP			1.000	0.188**	0.479**	-0.041	0.014	0.035	0.259**	-0.004	-0.019	-0.067	0.257**
NNMS				1.000	0.294**	-0.043	0.078	-0.067	0.361**	-0.023	0.018	0.007	0.341**
SG					1.000	-0.051	0.053	0.067	0.399**	-0.004	-0.004	-0.091	0.393**
FL						1.000	0.389**	0.109*	0.023	-0.006	-0.095*	-0.089	0.060
FD							1.000	0.040	0.250**	-0.040	-0.038	0.004	0.270**
AFW								1.000	-0.189**	-0.035	0.020	-0.125**	0.044
NFPP									1.000	0.007	0.040	-0.143**	0.944**
NSPF										1.000	0.020	-0.071	0.014
NR											1.000	0.070	0.031
DFF												1.000	-0.196**
TYPP													1.000

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image

↗ Enlarge

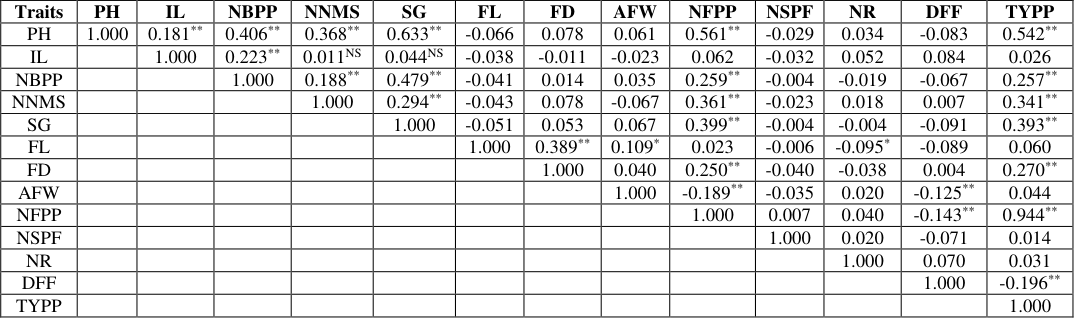

Table 1Close ×

Phenotypic correlation coefficient among thirteen traits in F2 population of cross OK-2017-006 × Pusa A4

Open full-size image ↗

Original paper tableSource PDF · page 3 ↗

Traits	PH	NNMS	SG	FL	FD	AFW	NFPP	DFF	Correlation values
PH	-0.03656	0.00336	-0.00228	-0.00013	0.00098	0.01423	0.56041	0.00232	0.542**
NNMS	-0.01345	0.00913	-0.00106	-0.00008	0.00099	-0.01547	0.36115	-0.00020	0.341**
SG	-0.02315	0.00268	-0.00360	-0.00010	0.00067	0.01545	0.39842	0.00254	0.393**
FL	0.00241	-0.00039	0.00018	0.00191	0.00488	0.02526	0.02314	0.00248	0.060
FD	-0.00286	0.00072	-0.00019	0.00074	0.01256	0.00923	0.24957	-0.00011	0.270**
AFW	-0.00224	-0.00061	-0.00024	0.00021	0.00050	0.23194	-0.18924	0.00348	0.044
NFPP	-0.02050	0.00330	-0.00144	0.00004	0.00314	-0.04392	0.99935	0.00399	0.944**
DFF	0.00304	0.00007	0.00033	-0.00017	0.00005	-0.02898	-0.14293	-0.02787	-0.196**

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image

↗ Enlarge

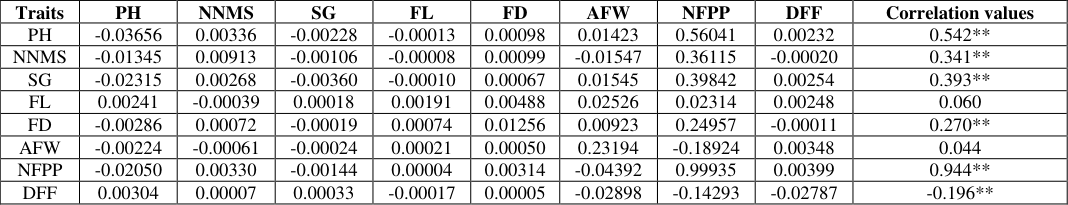

Table 2Close ×

Direct and indirect effect of different characters on fruit yield per plant in F2 population of OK-2017-006 × Pusa A4

Open full-size image ↗

Original paper tableSource PDF · page 4 ↗

1. Alam K, Singh MK, Kumar M, Singh A, Kumar V, Ahmad M, Keshari D. Estimation of genetic variability, correlation and path coefficient in okra (Abelmoschus esculentus (L.) Moench). J Pharm Phytochem. 2020;9(5):1484-1487.
2. Al-jibourie HA, Miller PA, Robinson HF. Genotypic and environmental variance in an upland cotton cross of interspecific origin. J Agron. 1958;50:633-637.
3. Anonymous. Area and production of okra. National Horticulture Board. Accessed 2022. Available at: https://nhb.gov.in/area-pro/horst_galance.
4. Anonymous. Protection of Plant Varieties and Farmers' Rights Authority (PPV & FRA). Available at: https://plantauthority.gov.in/sites/default/files/reviseddus-test-gudeilinesokra-01.04.2022.pdf. Accessed 2022.
5. Moench] through four distinct crosses in F2. Biol Forum. 2023;15(5):765-772.
6. Dewey D, Lu K. A correlation and path-coefficient analysis of components of crested wheatgrass seed production. J Agron. 1959;51(9):515-518.
7. Ford CE. A contribution to cytogenetical survey of the Malvaceae. Genetica. 1938;20:431-452.
8. Hammon S, Van Stoles DH. Characterization and evaluation of okra. In: Brown AHD, editor. The use of plant genetic resources. Cambridge: Cambridge University Press, 1989, p. 173-174.
9. Jadhav RS, Munde GR, Sargar PR, Choudhari KG, Shinde JV. Correlation analysis for fruit yield and its related traits in genotypes of okra [Abelmoschus esculentus (L.) Moench]. J Pharm Innov. 2022;11(10):284-287.
10. Karmata RS, Nanavati JI, Pandya MM, Sondarava PM. Utilizing a cause-effect model to identify factors linked to fruit yield in okra (Abelmoschus esculentus L. Moench). J Pharm Innov. 2023;12(8):1179-1184.
11. Komolafe RJ, Ariyo OJ, Alake CO, Oduwaye OA. Genetic variability, heritability, genetic advance, association between fruit yield and yield components of okra (Abelmoschus esculentus L. Moench) accessions grown in two different years. Isr J Plant Sci. 2023;12:113. 12. Lakshmi J, Gowda R, Parashivamurthy, Narayanaswamy S, Shivanandam VN. Influence of preflowering pinching and Maleic hydrazide spray on plant growth, seed yield and quality attributes in fenugreek. Legum Res Int J. 2015;38(3):353.
12. Lal GM. Estimation of correlation and path coefficient analysis for quantitative characters in okra (Abelmoschus esculentus L. Moench) genotypes. Int J Environ Res. 2023;13(10):491-501.
13. Mohammed J, Mohammed W, Shiferaw E. Performance and genetic variability of okra (Abelmoschus esculentus (L.) Moench) genotypes in Ethiopia for agromorphology and biochemical traits. Adv Agric. 2022;14:111-118.
14. Nayak NJ, Tripathy P, Sahu GS, Dash SK, Lenka D, Mishra S. Correlation and path analysis of okra (Abelmoschus esculentus L. Moench) germplasms for fruit yield and its components. Int J Environ Res. 2023;12(12):1963-1969.
15. Nbeaa RA, Abo-Trabi B, Ahmad E. Phenotypic correlation and path coefficient and relative importance studies in okra (Abelmoschus esculentus (L.) Moench). Basrah J Agric Sci. 2023;36(1):50-59.
16. Neeraj S, Dhirendra KS, Pooja P, Ankith P, Monisha R. Correlation and path coefficient studies in okra [Abelmoschus esculentus (L.) Moench]. Int J Curr Microbiol Appl Sci. 2017;6(7):1096-1101.
17. Pandas Development Team. pandas: Powerful Python data analysis toolkit, version 1.5.3. Available at: https://pandas.pydata.org. Accessed 2023.
18. Moench.). PhD Thesis, University of Agricultural Sciences, Dharwad, 1995.
19. Pawar Y, Sarode SB, Shaikh AB, Kharad DA. Phenotypic and genotypic path coefficient analysis studies in okra (Abelmoschus esculentus (L) Moench). J Pharm Phytochem. 2020;9(5):488-493.
20. Rahevar PM, Chauhan RM, Patel PT, Solanki SD, Gami RA. Delineation of selection criterion using Pearson correlation and path coefficient analysis in mutant mungbean (Vigna radiata) lines. Indian J Agric Sci. 2023;93(7):738-742.
21. Rana A, Singh S, Bakshi M, Singh SK. Studied genetic variability, correlation and path analysis for morphological, yield and yield attributed traits in okra (Abelmoschus esculentus (L.) Moench). Int J Agric Stat Sci. 2020;16(1):387-394.
22. Raval V, Patel AI, Vashi CB, Chaudhari BN. Correlation and path analysis studies in okra (Abelmoschus esculentus (L.) Moench). Int J Chem Stud. 2019;7(1):1230-1233.
23. Rynjah S, Arumugam T, Ganesan KN, Kamalkumaran PR. Correlation and path coefficient analysis studies in okra (Abelmoschus esculentus (L.) Moench). J Pharm Phytochem. 2020;9(3):1423-1427.
24. Saleem AM, Ziaf K, Amjad M, Shakeel A, Ghani MA, Noor A. Assessment of genetic diversity among okra genotypes through PCA and correlation analysis for fruit tenderness and morphological and yield traits. Pak J Bot. 2023;55(2):555-562.
25. Schippers RR. African indigenous vegetables: An overview of the cultivated species. Natural Resources Institute/ACP-EU Technical Centre for Agricultural and Rural Cooperation; 2000. Available at: http://r4d.dfid.gov.uk/Output/179575/.
26. Shah H. Consequences of sowing dates and umbel pinching on Daucas carota seed production. Pure Appl Biol. 2019;8(2):1771-1781.
27. Singh HB, Bhatnagar A. Chromosome number in an okra from Ghana. Indian J Genet Plant Breed. 1975;36:26-27.
28. Sravanthi U, Prabhakar BN, Saidaiah P, Rao AM, Narayana DL, Sathish G. Studies on genetic variability in okra (Abelmoschus esculentus (L.) Moench). J Pharm Innov. 2021;10(11):151-155.
29. Waskom ML. seaborn: Statistical data visualization. J Open Source Softw. 2021;6(60):3021. DOI: 10.21105/joss.03021.
30. Wei T, Simko V. R package 'corrplot': Visualization of a correlation matrix (Version 0.92). Available at: https://github.com/taiyun/corrplot. Accessed 2021.
31. Wright S. Correlation and causation. J Agric Res. 1921;20:557-585.
32. Yates F, Mather K. Ronald Aylmer Fisher. 1890-1962. Biogr Mem Fellows R Soc. 1963;9:91-129.
33. Yogita, Kumar R, Singh D, Yadav K, Srishti, Rohila AK, Kumar A, Tyagi N, Kumar A. Correlation and Path Analysis Studies in Onion (Allium Cepa) Genotype. Indian J Agric Sci. 2023;93(3):302-307.
