Spectrophotometric method for determining Paracetamol in aqueous and pharmaceutical formulations using oxidation by potassium ferricyanide and coupling with sodium tungstate

Mohammed Ahmed MustafaAmjad HusseinOmar Tareq Zaidan

Volume 6(2) · Pages 138–144 · DOI: 10.33545/26646781.2024.v6.i2b.238 ↗

Research areasAnalytical Methods in PharmaceuticalsChemical Thermodynamics and Molecular StructureThermal and Kinetic Analysis

↓ Read full-text PDF0 citations

Abstract

Author-written

To quantify paracetamol and its several medicinal formulations in an aqueous solution, a spectrophotometric approach was suggested. Paracetamol is oxidized by potassium ferricyanide and then coupled with sodium tungstate in a basic media as the basis for the procedure. The aqueous solution with a brown dye has the maximum absorption at 565 nm. It was discovered that the molar absorptivity was (2569.89 L/mol. cm) and that it complied with the law of beer between 1 - 65 µg/mL. The assay of pills, syrup, and ampules is accomplished with success using this technique.

Summary

Source-checked

Plain-language reading of the full paper, prepared with AI and checked against the text. Each point links to the authors' own words.

  1. Why it matters

    • Paracetamol is a widely used medication for treating pain and fever. View evidence ↗

      Why it matters

      Paracetamol is a widely used medication for treating pain and fever.

      In the paper's own words

      “One of the most well-known and often-used medications for fever and pain relief is paracetamol (Acetaminophen).”

      Page 1

      Found in: Introduction

      Read it in the full textOpen PDF at page 1 ↗
    • Improper storage of paracetamol formulations can lead to the formation of toxic substances such as p-aminophenol. View evidence ↗

      Why it matters

      Improper storage of paracetamol formulations can lead to the formation of toxic substances such as p-aminophenol.

      In the paper's own words

      “paracetamol medicinal formulations may break down into toxic substances like p-aminophenol when stored improperly”

      Page 1

      Found in: Scheme 1:

      Read it in the full textOpen PDF at page 1 ↗
    • Spectrophotometric techniques are often used for drug analysis because they are easy to use and require readily available reagents and equipment. View evidence ↗

      Why it matters

      Spectrophotometric techniques are often used for drug analysis because they are easy to use and require readily available reagents and equipment.

      In the paper's own words

      “Several spectrophotometric techniques have been employed because to their ease of use and the availability of several reagents and various devices that they require”

      Page 1

      Found in: Scheme 1:

      Read it in the full textOpen PDF at page 1 ↗
  2. The question

    • The study aimed to develop a spectrophotometric method to estimate paracetamol in aqueous pharmaceutical preparations using oxidation by potassium ferricyanide and coupling with sodium tungstate in an alkaline medium. View evidence ↗

      The question

      The study aimed to develop a spectrophotometric method to estimate paracetamol in aqueous pharmaceutical preparations using oxidation by potassium ferricyanide and coupling with sodium tungstate in an alkaline medium.

      In the paper's own words

      “The present research included a spectrophotometric method for the estimation of Paracetamol in three pharmaceutical preparations in their aqueous solutions using the oxidation of Paracetamol by Potassium Ferricyanide (K.F) and coupling by the detector of Sodium Tungstate (STN) in an alkaline medium by Potassium hydroxide to produce brown dye.”

      Page 2

      Found in: Scheme 1:

      Read it in the full textOpen PDF at page 2 ↗
  3. What they did

    • A paracetamol stock solution of 500 ppm was prepared and then diluted to create a concentration range of 1-70 µg/mL for analysis. View evidence ↗

      What they did

      A paracetamol stock solution of 500 ppm was prepared and then diluted to create a concentration range of 1-70 µg/mL for analysis.

      In the paper's own words

      “The standard stock solution for Paracetamol (500 ppm) was prepared by dissolving (0.05 gm) of Paracetamol in 100 ml of distilled water, then the range of concentrations (1-70 µg/mL) were prepared by subsequent dilutions of the drug.”

      Page 2

      Found in: Standard drug solution

      Read it in the full textOpen PDF at page 2 ↗
    • Sodium tungstate and potassium ferricyanide solutions were prepared at a concentration of 0.01M. View evidence ↗

      What they did

      Sodium tungstate and potassium ferricyanide solutions were prepared at a concentration of 0.01M.

      In the paper's own words

      “The reagent of Sodium tungstate (Na2WO4) (STN) and oxidizer of Potassium ferricyanide (K3Fe (CN)6) (K.F) solutions were prepared by dissolving (0.2938 gm, 0.3683 gm) respectively in 100 ml of distilled water each separately to obtain a concentration of 0.01M.”

      Page 2

      Found in: The reagent and oxidizer solutions

      Read it in the full textOpen PDF at page 2 ↗
    • Alkaline solutions used in the process were prepared at a concentration of 1 M. View evidence ↗

      What they did

      Alkaline solutions used in the process were prepared at a concentration of 1 M.

      In the paper's own words

      “The alkaline solutions used in this work were prepared by using a concentration of (1 M) per alkaline solution by dissolving the appropriate weights in (100 ml) of distilled water.”

      Page 2

      Found in: The base solutions

      Read it in the full textOpen PDF at page 2 ↗
    • Interfering materials including starch, glucose, lactose, sucrose, and sodium benzoate were tested at concentrations of 40, 80, and 120 µg/mL. View evidence ↗

      What they did

      Interfering materials including starch, glucose, lactose, sucrose, and sodium benzoate were tested at concentrations of 40, 80, and 120 µg/mL.

      In the paper's own words

      “To prepare the standard solutions of (40, 80, 120 µg/mL) of each (Starch, glucose, lactose, sucrose, sodium benzoate) by using (0.001, 0.002, 0.003 gm) of each material separately to 25mL of volumetric flasks”

      Page 2

      Found in: The overlapping materials solutions

      Read it in the full textOpen PDF at page 2 ↗
  4. What they found

    • The method demonstrated linearity between 1 and 65 µg/mL, with a molar absorptivity of 2569.89 L/mol.cm. View evidence ↗

      What they found

      The method demonstrated linearity between 1 and 65 µg/mL, with a molar absorptivity of 2569.89 L/mol.cm.

      In the paper's own words

      “The resulting linearity limits ranged between (1 - 65 µg/ml) and the molar absorptivity was (2569.89 L/mol. cm).”

      Page 4

      Found in: Procedure and calibration graph

      Read it in the full textOpen PDF at page 4 ↗
    • The method's accuracy was found to be between 96% and 102.6%, indicating high precision. View evidence ↗

      What they found

      The method's accuracy was found to be between 96% and 102.6%, indicating high precision.

      In the paper's own words

      “the accuracy values were very satisfactory and ranged between (96% - 102.6%) and the precision was high.”

      Page 5

      Found in: Accuracy and precision

      Read it in the full textOpen PDF at page 5 ↗
    • The presence of interfering substances did not affect the formation of the brown dye or the accuracy of the results. View evidence ↗

      What they found

      The presence of interfering substances did not affect the formation of the brown dye or the accuracy of the results.

      In the paper's own words

      “The solutions were used in final volumetric flasks of 25 ml and gave the same brown dye with high accuracy values.”

      Page 6

      Found in: Fig 3:

      Read it in the full textOpen PDF at page 6 ↗
    • The method achieved a detection limit of 0.229 µg/mL and a quantification limit of 0.764 µg/mL. View evidence ↗

      What they found

      The method achieved a detection limit of 0.229 µg/mL and a quantification limit of 0.764 µg/mL.

      In the paper's own words

      “gave a detection limit equal to (0.229 µg/ml) and a quantitative limit equal to (0.764 µg/ml).”

      Page 6

      Found in: Conclusion:

      Read it in the full textOpen PDF at page 6 ↗
  5. What it means

    • The authors conclude that the UV-Vis spectrophotometric method using oxidation and conjugation is a successful approach for paracetamol determination, offering good linearity and sensitivity. View evidence ↗

      What it means

      The authors conclude that the UV-Vis spectrophotometric method using oxidation and conjugation is a successful approach for paracetamol determination, offering good linearity and sensitivity.

      In the paper's own words

      “The oxidation and conjugation were successfully applied to Paracetamol by spectrophotometric technique (Uv-vis). This procedure gave a good linearity which ranged between (1- 65 µg/ml) and molar absorptivity equal to (2569.89 L/mol.cm) and Sandell`s index (0.05882 µg/ml).”

      Page 6

      Found in: Conclusion:

      Read it in the full textOpen PDF at page 6 ↗

Visual summary

3 visuals

Illustrations explain the paper; charts are replotted from the paper's own table values.

AI-generated illustration
AI-generated conceptual illustration (Paracetamol molecules in a glass beaker). It explains the idea and does not show study data.↗ Enlarge
Chemical Process Flow
AI-generated conceptual illustration (Paracetamol molecules in a glass beaker). It explains the idea and does not show study data.

AI-generated conceptual illustration (Paracetamol molecules in a glass beaker). It explains the idea and does not show study data.

Open full-size image ↗

Chemical Process Flow

AI-generated conceptual illustration (Paracetamol molecules in a glass beaker). It explains the idea and does not show study data.

View source evidence ↗

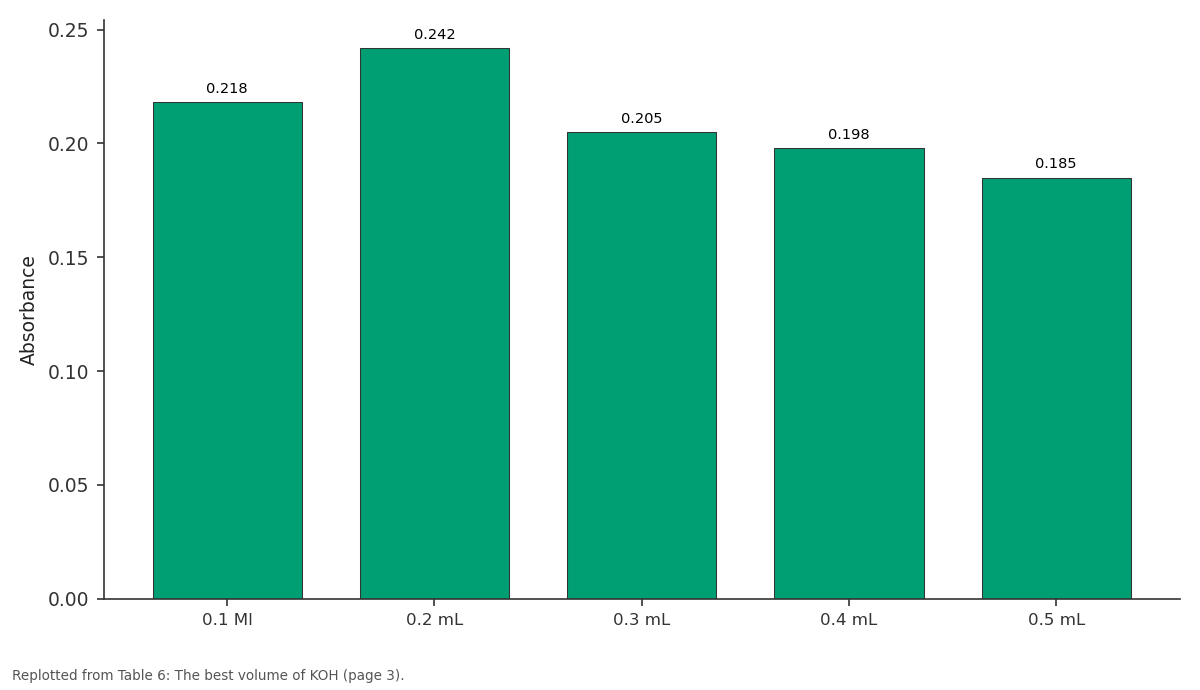

Replotted from source data
Replotted from Table 6 (page 3) of the original paper. Every bar is the paper's own table value.↗ Enlarge
Absorbance: 0.1 Ml vs 0.2 mL vs 0.3 mL vs 0.4 mL vs 0.5 mL
Replotted from Table 6 (page 3) of the original paper. Every bar is the paper's own table value.

Replotted from Table 6 (page 3) of the original paper. Every bar is the paper's own table value.

Open full-size image ↗

Absorbance: 0.1 Ml vs 0.2 mL vs 0.3 mL vs 0.4 mL vs 0.5 mL

Replotted from Table 6 (page 3) of the original paper. Every bar is the paper's own table value.

View source evidence ↗
Replotted from source data

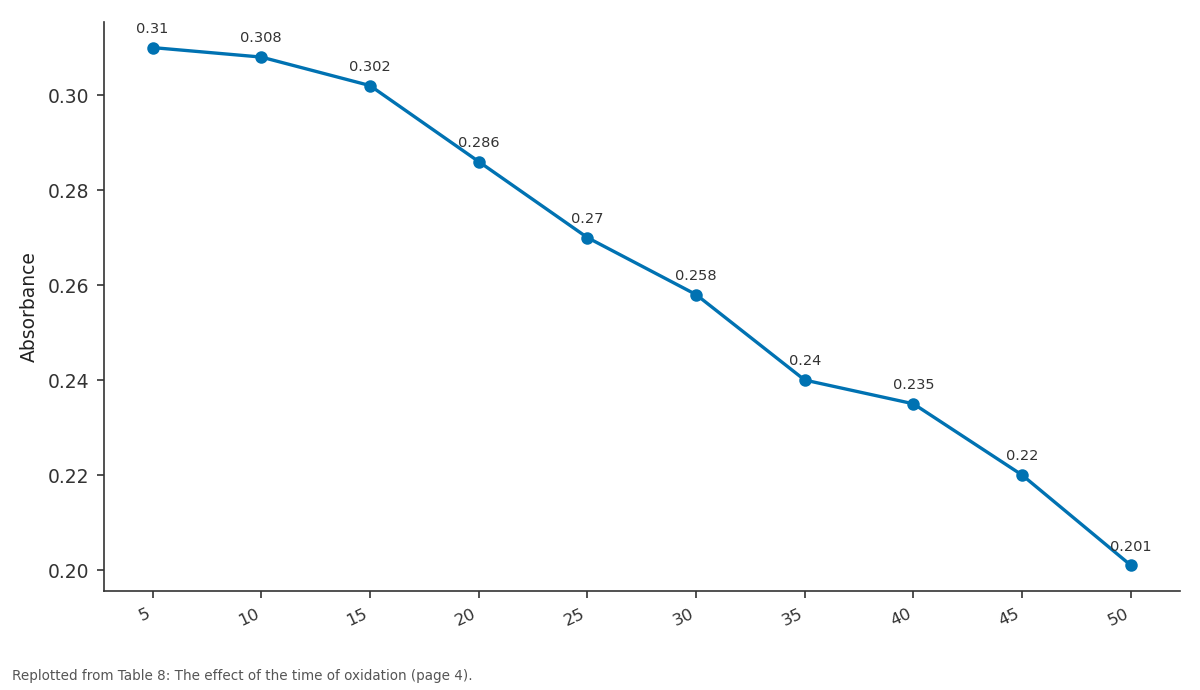

Replotted from Table 8 (page 4) of the original paper. Every bar is the paper's own table value.↗ Enlarge
Absorbance: 5 vs 10 vs 15 vs 20 vs 25
Replotted from Table 8 (page 4) of the original paper. Every bar is the paper's own table value.

Replotted from Table 8 (page 4) of the original paper. Every bar is the paper's own table value.

Open full-size image ↗

Absorbance: 5 vs 10 vs 15 vs 20 vs 25

Replotted from Table 8 (page 4) of the original paper. Every bar is the paper's own table value.

View source evidence ↗

Figures & tables

From the original paper
Shows the chemicals used in this researchTable 1Page 2The best volume of the reagentTable 4Page 3The best oxidizing agent for the methodTable 2Page 3The best baseTable 5Page 3The best volume of oxidizing agentTable 3Page 3The best volume of KOHTable 6Page 3The effect of a sequence of additionsTable 7Page 4The effect of the time of oxidationTable 8Page 4The summary of ideal conditionsTable 9Page 4Absorption spectrum of paracetamol at 483 nm by Uv-visibleFigure 1Page 4Calibration graphs for the determination of Paracetamol by this methodTable 10Page 5The recovery and average percentage and precision of the methodTable 11Page 5The calibration curve of paracetamol at 565 nmFigure 2Page 5The application of Job`s methodFigure 3Page 5The summary of the effect of excipientsTable 12Page 6The used pharmaceutical preparation and its concentration & originTable 13Page 6The use of pharmaceutical application dosageTable 14Page 6The advantages and distinctions between the suggested approach and others in the literature are emphasized by this comparison.Table 15Page 6
FULL TEXT Original article · reflowed for reading

Introduction

One of the most well-known and often-used medications for fever and pain relief is paracetamol (Acetaminophen). Among analgesics, it holds a special place. Its IUPAC name is N-(4-hydroxyphenyl) acetamide, and its formula is C8H9NO2, with a molecular weight of 151.165 g.mol-1 (Scheme 1). Many kinds of paracetamol are available, and it is frequently taken with other drugs, such as cold medications. Typically, it is taken orally or intrarectally, but it can also be infused into a vein [1] .

Scheme 1:

The structure of paracetamol One essential component for the production of paracetamol is P-aminophenol. Additionally, it serves as an intermediate in the body's hydrolysis of paracetamol. One critical component for the production of paracetamol is P-aminophenol. Additionally, it serves as an intermediate in the body's hydrolysis of paracetamol [2,3] . paracetamol medicinal formulations may break down into toxic substances like p-aminophenol when stored improperly [4,5] . Numerous approaches were put proposed and documented in the literature to determine whether p-Amp was pure or the product of paracetamol's hydrolysis in an acidic or basic environment. Some of these techniques was HPLC [6,8] , electrochemical [9,10] , fluorescence [11] . Several spectrophotometric techniques have been employed because to their ease of use and the availability of several reagents and various devices that they require [12][13][14] . One of the most significant organic reactions with a variety of uses in analytical chemistry is oxidative coupling reactions.

The coupling of two organic molecules in the presence of an oxidizing agent under suitable conditions is necessary for oxidative coupling processes [2] . Diazotization of paminophenol resulted from hydrolysis of paracetamol then coupling with a various coupling agent such as 4 [(2-amino-1, 3thiazol-4-yl) amino] nitrobenzene [15] . A strong blue water-soluble dye is created when paracetamol and o-cresol undergo a direct reaction (oxidative-coupling reaction) in an alkaline media with sodium periodate present [16] , Oxidative coupling techniques have also been applied to N-(1-naphthyl) ethylenediamine dihydrochloride in the presence of potassium iodate [17] . Oxidation with N-Bromo succinimide and bleaching color of Eriochrome Black-T [18] , and the formation of Schiff bases also showed [19] . The present research included a spectrophotometric method for the estimation of Paracetamol in three pharmaceutical preparations in their aqueous solutions using the oxidation of Paracetamol by Potassium Ferricyanide (K.F) and coupling by the detector of Sodium Tungstate (STN) in an alkaline medium by Potassium hydroxide to produce brown dye.

Experimental Apparatus

PD-303 Spectrophotometer / Apel -Japan, Shimadzu UV Spectrophotometer (UV-1800) Japanese made with 1 cm quartz cells, Sartorius / M-Power sensitive balance Japan made.

Materials

The table below shows the chemicals used in this research, along with the manufacturer and their molecular weight.

Procedure

Procedure

Standard drug solution

The standard stock solution for Paracetamol (500 ppm) was prepared by dissolving (0.05 gm) of Paracetamol in 100 ml of distilled water, then the range of concentrations (1-70 µg/mL) were prepared by subsequent dilutions of the drug.

The reagent and oxidizer solutions

The reagent of Sodium tungstate (Na2WO4) (STN) and oxidizer of Potassium ferricyanide (K3Fe (CN)6) (K.F) solutions were prepared by dissolving (0.2938 gm, 0.3683 gm) respectively in 100 ml of distilled water each separately to obtain a concentration of 0.01M. The solutions were saved in a dark bottle.

The base solutions

The alkaline solutions used in this work were prepared by using a concentration of (1 M) per alkaline solution by dissolving the appropriate weights in (100 ml) of distilled water.

The solutions of interfering materials: Three increasing concentrations (40, 80, 120 µg/mL) of the interfering were prepared by dissolving the following weights respectively (0.001 0.002,0.003 gm) using glucose, Lactose, Sucrose, Starch, and Sodium benzoate each separately in a 25 mL bottle, fill to the mark by distilled water.

The pharmaceutical preparation solutions Tablets

Ten tablets of paracetamol were weighed and ground. Then precisely a weight of the mill was taken (0.0309 gm) dissolved in (100 mL) volumetric flask and fill the volume to the mark with distilled water to prepare (100 µg/mL) of paracetamol. This standard solution was used in the analytical applications of paracetamol.

Syrup and ampule

To prepare a concentration of 100 µg/mL of paracetamol pharmaceuticals (Syrup and ampule) a (1.0416, 0.208 mL) were taken and then moved to volumetric flasks of 50 mL separately.

The overlapping materials solutions

To prepare the standard solutions of (40, 80, 120 µg/mL) of each (Starch, glucose, lactose, sucrose, sodium benzoate) by using (0.001, 0.002, 0.003 gm) of each material separately to 25mL of volumetric flasks flask and fill the volume to the mark with distilled water.

Results and Discussion

For the subsequent experiments, 100 µg/mL of Paracetamol was taken using 25 mL volumetric flasks as a final volume and measured the absorbance and performed at 565 nm.

Principle of the method

This method includes the oxidation of Paracetamol by Potassium Ferricyanide (K.F) and coupling by the detector of Sodium Tungstate (STN) in an alkaline medium by Potassium hydroxide to produce brown dye.

Study of the optimum reaction condition:

Various variables were measured to find the best color intensity for the resulting color pigment according to the best-chosen conditions.

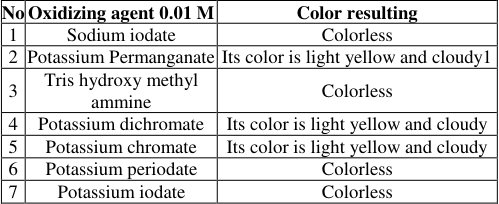

Study of select the best oxidizing agent

To find the best oxidizing had used for the oxidation process, (1 ml) of each of the different oxidizing agents was used separately to (1 ml) of the detector of sodium tungstate (STN) then adding (1 ml) of Paracetamol (500 µg/ml). Finally, add (1 ml) of potassium hydroxide in (25 ml) volumetric flasks complete the volume with distilled water to the mark and shake well. Potassium Ferricyanide gives the best color and best intensity, so it was chosen as the best oxidizing agent for this research.

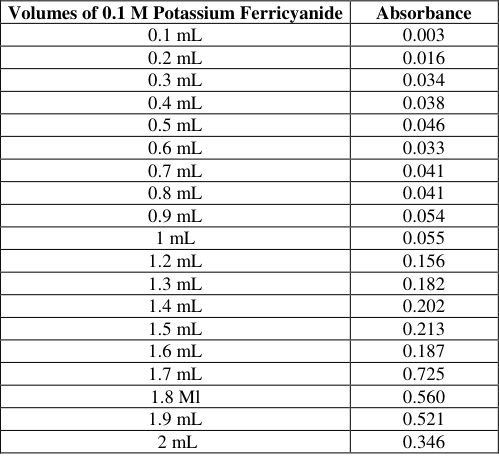

Study of select the best volume of oxidizing agent

To find the best volume of oxidizing agent different sizes of Potassium ferricyanide were used ranging between (0.25 -4 ml) (0.01M), then add (1 ml) of the reagent of (0.01 M) Sodium tungstate. Finally, add (1 ml) of Paracetamol (500 ppm) and (1 ml) of (1M) Potassium hydroxide. Then we complete the volume of distilled water in 25 L volumetric flasks. The 1.7 ml of Potassium ferricyanide was chosen as the best volume because it gave the highest absorption.

Study of select the best volume of the reagent

Increasing volumes of the reagent of Sodium Tungstate (STN) were used at a concentration of (0.01 M), ranging between (0.1 -2 ml). (1.7 ml) (0.01M) of oxidizing agent Potassium Ferricyanide (K.F) was added, followed by the addition of (1 ml) of (500 ppm) of Paracetamol and (1ml) of (1M) Potassium hydroxide in (25 ml) volumetric flasks. The volume was completed to the mark with distilled water and well-shaken. It was found that the best volume of the detector (STN) is (0.4 ml).

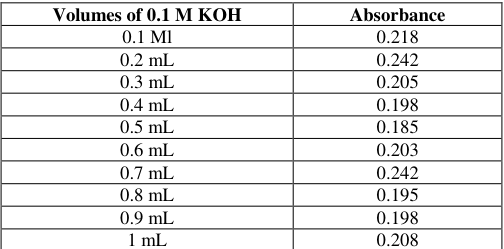

Study of select the best volume of KOH

To measure the best volume of Potassium hydroxide, absorbents of several volumes ranged between (0.1 -1 ml). The (0.2 ml) was the best volume among the other because it gave the highest absorption and best color intensity.

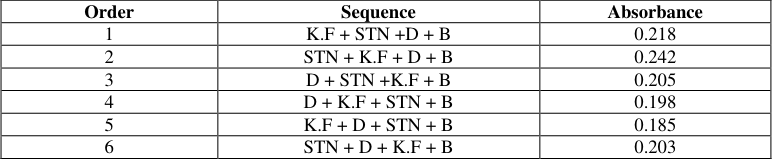

Study of the effect of sequence of additions

To study the effect of the sequence of additions on the absorption and intensity of the resulting color, several sequences were taken. It was found that the best sequence is when the reagent is added first, followed by the oxidizing agent, then the drug, and finally, the base is added.

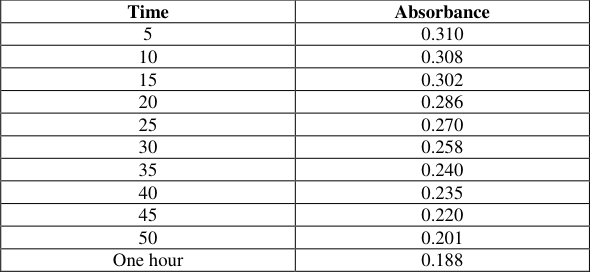

Study of effect of the time of oxidation

To study the effect of settling time on the absorption of the product from the oxidation process, appropriate sequences of additions were applied. The resulting dye of oxidation was stable for more than (50 minutes), while the best time for waiting for measure is (5 minutes).

°C 565nm

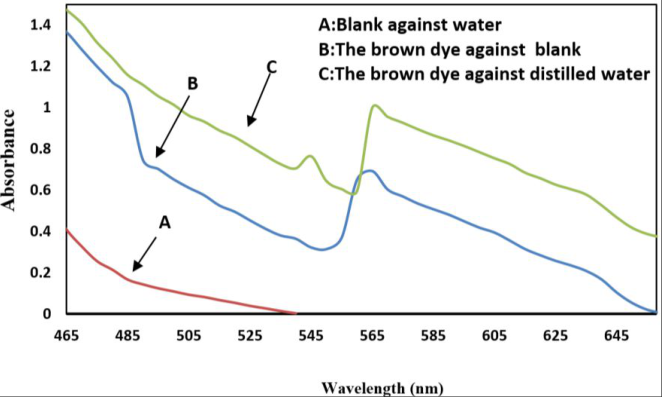

Final absorption spectra A brown dye was formed that gave the highest absorption at 565 nm. This dye is produced by the oxidation of Paracetamol by Potassium Ferricyanide (K.F) and coupling by the detector of Sodium Tungstate (STN) in an alkaline medium by Potassium hydroxide. Absorbance was measured using distilled water as a good solvent for this method.

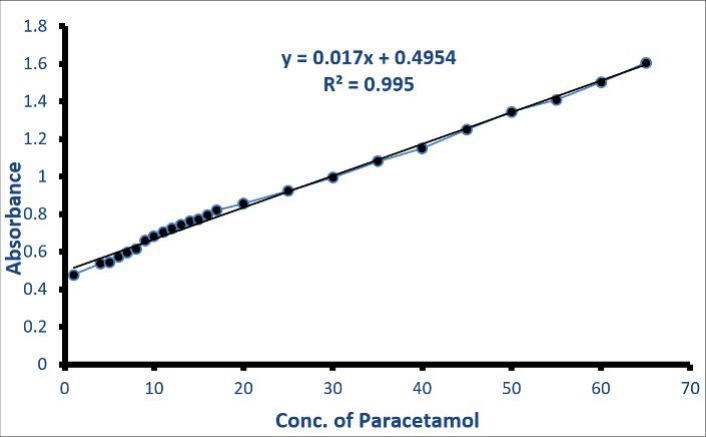

Procedure and calibration graph

To find out the calibration graph for this research, (25 ml) volumetric flasks were used (0.4 ml) of (0.01 M) of the reagent Sodium tungstate (STN) was added to all volumetric flasks and then (1.7 ml) of (0.01M) the oxidant Potassium ferricyanide (K.F) was added. Later, increasing volumes of (500µg/ml) Paracetamol were added, ranging between (0.05 -3.75 ml). Finally, (0.2 ml) of 1 M) KOH was added to all volumetric flasks and made up to the mark with distilled water and shaken well. The resulting aqueous solutions of the dye were waited for (5 min) and then their absorbance was measured at (565 nm) against the blank. The resulting linearity limits ranged between (1 -65 µg/ml) and the molar absorptivity was (2569.89 L/mol. cm).

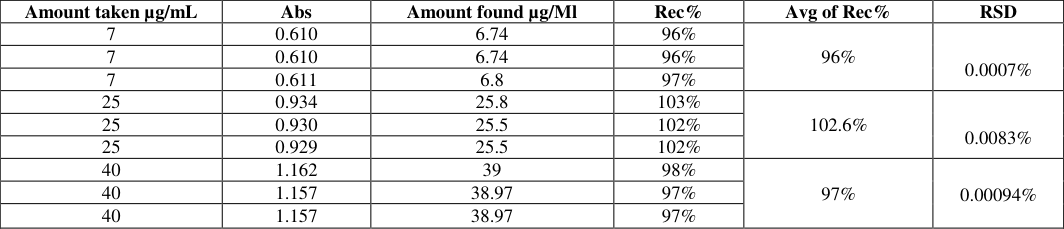

Accuracy and precision

To find the accuracy and precision found in this research, three different concentrations were proposed. The results for the accuracy values were very satisfactory and ranged between (96% -102.6%) and the precision was high. Nature of dye: To find out how the drug of Paracetamol is related to the reagent used, the Job method was applied. The resulting ratio for this work to the brown dye Paracetamol was (1:1).

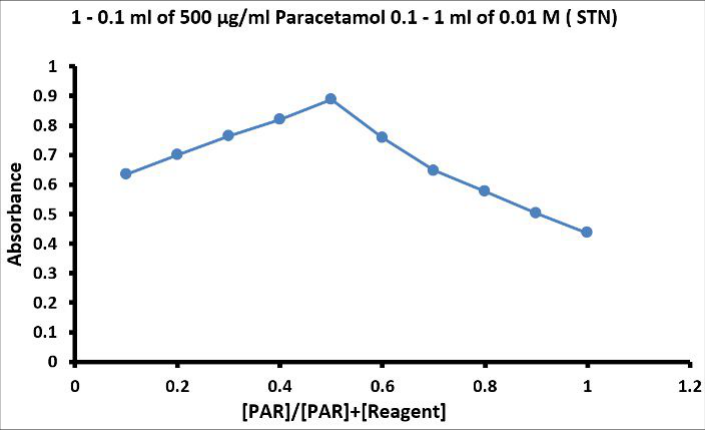

Fig 3:

The application of Job`s method

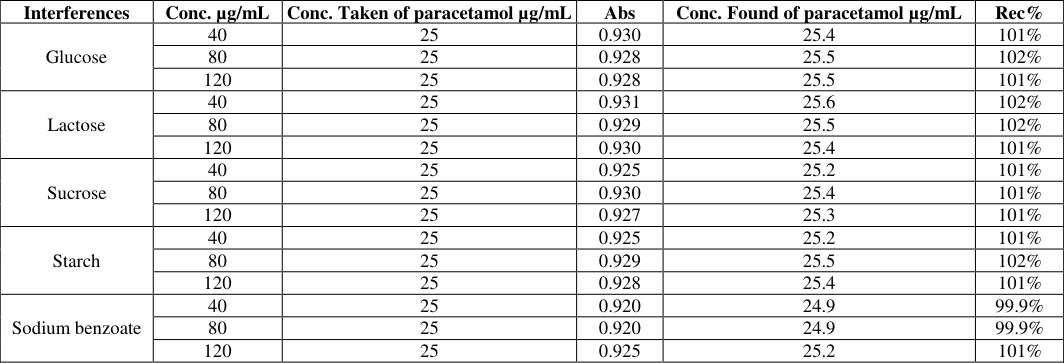

The effect of interference: To study the effect of some interfering substances on the composition of the resulting brown dye, three different concentrations of them were used with a fixed concentration of Paracetamol. The solutions were used in final volumetric flasks of 25 ml and gave the same brown dye with high accuracy values.

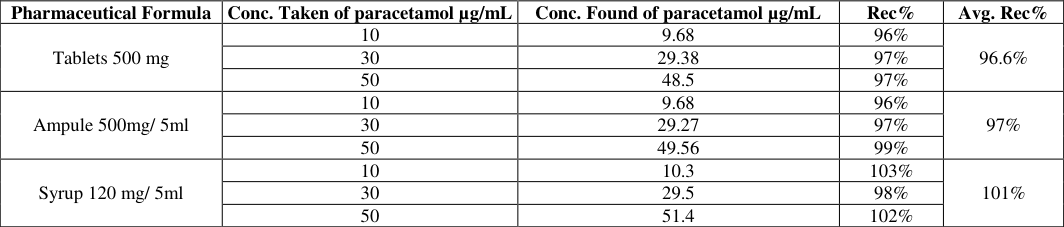

Application of the method on the pharmaceutical dosage

The direct method was applied to three pharmaceutical preparations of Paracetamol in their aqueous solutions and all of them gave high accuracy values and satisfactory results. A concentration of 500 µg/ml of each pharmaceutical preparation was prepared and the method was applied in final (25 ml) volumetric flasks.

Conclusion:

The oxidation and conjugation were successfully applied to Paracetamol by spectrophotometric technique (Uv-vis). This procedure gave a good linearity which ranged between (1-65 µg/ml) and molar absorptivity equal to (2569.89 L/mol.cm) and Sandell`s index (0.05882 µg/ml). This method has been successfully applied to three types of pharmaceutical preparations. This proposed method gave high accuracy and high precision and gave a detection limit equal to (0.229 µg/ml) and a quantitative limit equal to (0.764 µg/ml).

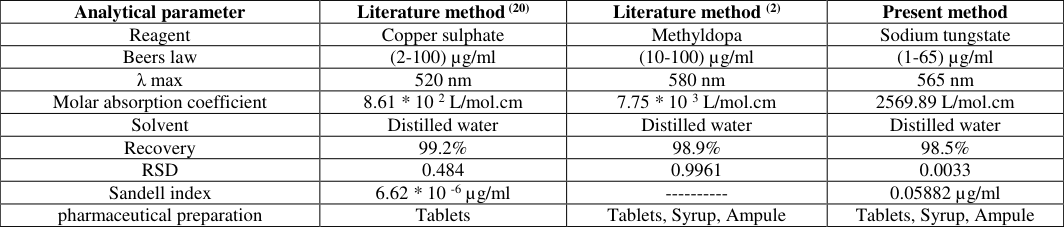

Comparing the suggested approach to literature methods Other oxidative coupling reaction methods were compared with the suggested approach for estimating Paracetamol; the results are shown in the table.

Table 15:

The advantages and distinctions between the suggested approach and others in the literature are emphasized by this comparison.

Analytical parameter

Literature method (20) Literature method (2) Present

Figures and tables from the paper

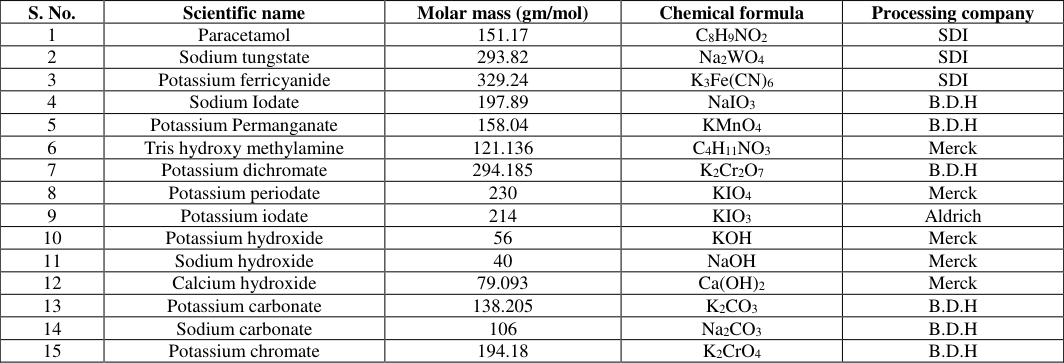

Table 1. Shows the chemicals used in this research
S. No.Scientific nameMolar mass (gm/mol)Chemical formulaProcessing company
1Paracetamol151.17C8H9NO2SDI
2Sodium tungstate293.82Na2WO4SDI
3Potassium ferricyanide329.24K3Fe(CN)6SDI
4Sodium Iodate197.89NaIO3B.D.H
5Potassium Permanganate158.04KMnO4B.D.H
6Tris hydroxy methylamine121.136C4H11NO3Merck
7Potassium dichromate294.185K2Cr2O7B.D.H
8Potassium periodate230KIO4Merck
9Potassium iodate214KIO3Aldrich
10Potassium hydroxide56KOHMerck
11Sodium hydroxide40NaOHMerck
12Calcium hydroxide79.093Ca(OH)2Merck
13Potassium carbonate138.205K2CO3B.D.H
14Sodium carbonate106Na2CO3B.D.H
15Potassium chromate194.18K2CrO4B.D.H

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
Shows the chemicals used in this research↗ Enlarge
Table 1
Shows the chemicals used in this research

Shows the chemicals used in this research

Open full-size image ↗
Original paper tableSource PDF · page 2 ↗

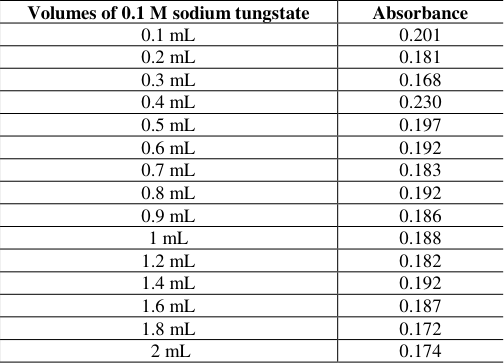

Table 4. The best volume of the reagent
Volumes of 0.1 M sodium tungstateAbsorbance
0.1 mL0.201
0.2 mL0.181
0.3 mL0.168
0.4 mL0.230
0.5 mL0.197
0.6 mL0.192
0.7 mL0.183
0.8 mL0.192
0.9 mL0.186
1 mL0.188
1.2 mL0.182
1.4 mL0.192
1.6 mL0.187
1.8 mL0.172
2 mL0.174

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The best volume of the reagent↗ Enlarge
Table 4
The best volume of the reagent

The best volume of the reagent

Open full-size image ↗
Original paper tableSource PDF · page 3 ↗
Table 2. The best oxidizing agent for the method
NoOxidizing agent 0.01 MColor resulting
1Sodium iodateColorless
2Potassium PermanganateIts color is light yellow and cloudy1
3Tris hydroxy methyl ammineColorless
4Potassium dichromateIts color is light yellow and cloudy
5Potassium chromateIts color is light yellow and cloudy
6Potassium periodateColorless
7Potassium iodateColorless

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The best oxidizing agent for the method↗ Enlarge
Table 2
The best oxidizing agent for the method

The best oxidizing agent for the method

Open full-size image ↗
Original paper tableSource PDF · page 3 ↗
Table 5. The best base
The using base 1 MAbsorbanceColor
NaOH0.185Orange brown
Ca(OH)20.173Very light yellow color
KOH0.230Dark brown color
K2CO30.074Very light yellow color
Na2CO30.051Very light yellow color

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The best base↗ Enlarge
Table 5
The best base

The best base

Open full-size image ↗
Original paper tableSource PDF · page 3 ↗
Table 3. The best volume of oxidizing agent
Volumes of 0.1 M Potassium FerricyanideAbsorbance
0.1 mL0.003
0.2 mL0.016
0.3 mL0.034
0.4 mL0.038
0.5 mL0.046
0.6 mL0.033
0.7 mL0.041
0.8 mL0.041
0.9 mL0.054
1 mL0.055
1.2 mL0.156
1.3 mL0.182
1.4 mL0.202
1.5 mL0.213
1.6 mL0.187
1.7 mL0.725
1.8 Ml0.560
1.9 mL0.521
2 mL0.346

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The best volume of oxidizing agent↗ Enlarge
Table 3
The best volume of oxidizing agent

The best volume of oxidizing agent

Open full-size image ↗
Original paper tableSource PDF · page 3 ↗
Table 6. The best volume of KOH
Volumes of 0.1 M KOHAbsorbance
0.1 Ml0.218
0.2 mL0.242
0.3 mL0.205
0.4 mL0.198
0.5 mL0.185
0.6 mL0.203
0.7 mL0.242
0.8 mL0.195
0.9 mL0.198
1 mL0.208

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The best volume of KOH↗ Enlarge
Table 6
The best volume of KOH

The best volume of KOH

Open full-size image ↗
Original paper tableSource PDF · page 3 ↗
Table 7. The effect of a sequence of additions
OrderSequenceAbsorbance
1K.F + STN +D + B0.218
2STN + K.F + D + B0.242
3D + STN +K.F + B0.205
4D + K.F + STN + B0.198
5K.F + D + STN + B0.185
6STN + D + K.F + B0.203

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The effect of a sequence of additions↗ Enlarge
Table 7
The effect of a sequence of additions

The effect of a sequence of additions

Open full-size image ↗
Original paper tableSource PDF · page 4 ↗
Table 8. The effect of the time of oxidation
TimeAbsorbance
50.310
100.308
150.302
200.286
250.270
300.258
350.240
400.235
450.220
500.201
One hour0.188

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The effect of the time of oxidation↗ Enlarge
Table 8
The effect of the time of oxidation

The effect of the time of oxidation

Open full-size image ↗
Original paper tableSource PDF · page 4 ↗
Table 9. The summary of ideal conditions
The summary of ideal conditions↗ Enlarge
Table 9
The summary of ideal conditions

The summary of ideal conditions

Open full-size image ↗
Original paper figureSource PDF · page 4 ↗
Figure 1. Absorption spectrum of paracetamol at 483 nm by Uv-visible
Absorption spectrum of paracetamol at 483 nm by Uv-visible↗ Enlarge
Figure 1
Absorption spectrum of paracetamol at 483 nm by Uv-visible

Absorption spectrum of paracetamol at 483 nm by Uv-visible

Open full-size image ↗
Original paper figureSource PDF · page 4 ↗
Table 10. Calibration graphs for the determination of Paracetamol by this method
Calibration graphs for the determination of Paracetamol by this method↗ Enlarge
Table 10
Calibration graphs for the determination of Paracetamol by this method

Calibration graphs for the determination of Paracetamol by this method

Open full-size image ↗
Original paper figureSource PDF · page 5 ↗
Table 11. The recovery and average percentage and precision of the method
Amount taken µg/mLAbsAmount found µg/MlRec%Avg of Rec%RSD
70.6106.7496%96%0.0007%
70.6106.7496%
70.6116.897%
250.93425.8103%102.6%0.0083%
250.93025.5102%
250.92925.5102%
401.1623998%97%0.00094%
401.15738.9797%
401.15738.9797%

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The recovery and average percentage and precision of the method↗ Enlarge
Table 11
The recovery and average percentage and precision of the method

The recovery and average percentage and precision of the method

Open full-size image ↗
Original paper tableSource PDF · page 5 ↗
Figure 2. The calibration curve of paracetamol at 565 nm
The calibration curve of paracetamol at 565 nm↗ Enlarge
Figure 2
The calibration curve of paracetamol at 565 nm

The calibration curve of paracetamol at 565 nm

Open full-size image ↗
Original paper figureSource PDF · page 5 ↗
Figure 3. The application of Job`s method
The application of Job`s method↗ Enlarge
Figure 3
The application of Job`s method

The application of Job`s method

Open full-size image ↗
Original paper figureSource PDF · page 5 ↗
Table 12. The summary of the effect of excipients
InterferencesConc. µg/mLConc. Taken of paracetamol µg/mLAbsConc. Found of paracetamol µg/mLRec%
Glucose40250.93025.4101%
80250.92825.5102%
120250.92825.5101%
Lactose40250.93125.6102%
80250.92925.5102%
120250.93025.4101%
Sucrose40250.92525.2101%
80250.93025.4101%
120250.92725.3101%
Starch40250.92525.2101%
80250.92925.5102%
120250.92825.4101%
Sodium benzoate40250.92024.999.9%
80250.92024.999.9%
120250.92525.2101%

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The summary of the effect of excipients↗ Enlarge
Table 12
The summary of the effect of excipients

The summary of the effect of excipients

Open full-size image ↗
Original paper tableSource PDF · page 6 ↗
Table 13. The used pharmaceutical preparation and its concentration & origin
DrugPharmaceutical contentConcentrationCompany
ParacetamolParacetamol tablets500 mgAswar AL-Khaleej Company
ParacetamolAntipyrol syrup120 mg /5 mlSDI -Iraq
ParacetamolParacetamol ampule600mg / 5 mlSDI -Iraq

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The used pharmaceutical preparation and its concentration & origin↗ Enlarge
Table 13
The used pharmaceutical preparation and its concentration & origin

The used pharmaceutical preparation and its concentration & origin

Open full-size image ↗
Original paper tableSource PDF · page 6 ↗
Table 14. The use of pharmaceutical application dosage
Pharmaceutical FormulaConc. Taken of paracetamol µg/mLConc. Found of paracetamol µg/mLRec%Avg. Rec%
Tablets 500 mg109.6896%96.6%
3029.3897%
5048.597%
Ampule 500mg/ 5ml109.6896%97%
3029.2797%
5049.5699%
Syrup 120 mg/ 5ml1010.3103%101%
3029.598%
5051.4102%

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The use of pharmaceutical application dosage↗ Enlarge
Table 14
The use of pharmaceutical application dosage

The use of pharmaceutical application dosage

Open full-size image ↗
Original paper tableSource PDF · page 6 ↗
Table 15. The advantages and distinctions between the suggested approach and others in the literature are emphasized by this comparison.
Analytical parameterLiterature method (20)Literature method (2)Present method
ReagentCopper sulphateMethyldopaSodium tungstate
Beers law(2-100) µg/ml(10-100) µg/ml(1-65) µg/ml
λ max520 nm580 nm565 nm
Molar absorption coefficient8.61 * 10 2 L/mol.cm7.75 * 10 3 L/mol.cm2569.89 L/mol.cm
SolventDistilled waterDistilled waterDistilled water
Recovery99.2%98.9%98.5%
RSD0.4840.99610.0033
Sandell index6.62 * 10 -6 µg/ml----------0.05882 µg/ml
pharmaceutical preparationTabletsTablets, Syrup, AmpuleTablets, Syrup, Ampule

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
The advantages and distinctions between the suggested approach and others in the literature are emphasized by this comparison.↗ Enlarge
Table 15
The advantages and distinctions between the suggested approach and others in the literature are emphasized by this comparison.

The advantages and distinctions between the suggested approach and others in the literature are emphasized by this comparison.

Open full-size image ↗
Original paper tableSource PDF · page 6 ↗

References

20 in the original paper
  1. British Pharmacopoeia. 2024. 5 th ed. London: The Stationery Office; Copyright by System Simulation Ltd.
  2. Thanoon ES, Raheed LA, Hasan IY. Oxidative coupling-base reaction for the indirect spectrophotometric determination of paracetamol in drug formulations. Int. J Eng Sci Technol. 2021;3(1):72-78.
  3. Sandrina S, Fauzan A. The process of synthesizing paracetamol involves the utilization of acetic anhydride to acetylate p-aminophenol. Crown J Dent Health Res. 2023;1(2):28-31.
  4. Soliman SS, Rahman MAA. Sustainable chemometric analysis of tension headache drugs in the presence of nephrotoxic impurities. Sustain Chem Pharm. 2024;42:101785.
  5. Mgharbel M, Halawy L, Milane A, Zeaiter J, Saad W. Pyrolysis of pharmaceuticals as a novel means of disposal and material recovery from waste for a circular economy. J Anal Appl Pyrolysis. 2023;172:106014.
  6. Hemant KT, Krishna PCK, Varaprasad RK, Srinivasa RY. RP-HPLC method for estimation of tramadol hydrochloride and paracetamol in pharmaceutical formulation. GSC Biol Pharm Sci. 2019;8(1):1-7.
  7. Mohammed OJ, Hamzah MJ, Saeed AM. RP-HPLC method validation for simultaneous estimation of paracetamol and caffeine in formulating pharmaceutical form. Res J Pharm Technol. 2021;14(9):4743-4748.
  8. Khosroshahi AM, Aflaki F, Saemiyan N, Abdollahpour A, Asgharian R. Simultaneous determination of paracetamol, 4-aminophenol, 4-chloroacetanilid, benzyl alcohol, benzaldehyde and EDTA by HPLC method in paracetamol injection ampoule. J Pharm Heal Sci. 2016;4(1):61-69.
  9. Keskin E, Ertürk AS. Electrochemical determination of paracetamol in pharmaceutical tablet by a novel oxidative pretreated pencil graphite electrode. Ionics. 2018;24:4043-4054.
  10. Masood Z, Muhammad H, Tahiri IA. Comparison of different electrochemical methodologies for electrode reactions: A case study of paracetamol. Electrochem. 2024;5(1):57-69.
  11. Li L, Lu Y, Ding Y, Cheng Y, Xu W, Zhang F. Determination of paracetamol based on its quenching effect on the photoluminescence of CdTe fluorescence probes. J Fluoresc. 2012;22:591-596.
  12. Behera S, Ghanty S, Ahmad F, Santra S, Banerjee S. UV-visible spectrophotometric method development and validation of assay of paracetamol tablet formulation. J Anal Bioanal Tech. 2012;3(6):151-157.
  13. Hussein AD, Abdulrahman MT, Raheem AS. UV spectrophotometric development and HPLC methods for estimation of paracetamol in oral syrup formulation: Validation, comparison and application. Int J Psychosoc Rehabil. 2020;24(04):1-12.
  14. Fakayode SO, Bolton B, Dassow B, Galvez K, Chohan H. Rapid screening and multicomponent quantifications of active components of oral syrup over-the-counter medications by Raman and UV-visible spectroscopy and multivariate regression analysis. Spectrochim Acta A Mol Biomol Spectrosc. 2024;305:123447.
  15. Abbas R, Allawi A, Abdulhassan N, Mahmoud N. Spectrophotometric determination of paracetamol using a newly synthesized chromogenic reagent 4-[(2-amino1, 3-thiazol-4-yl) amino] nitro benzene. Egypt J Chem. 2020;63(12):4681-4693.
  16. Al-Abachi MQ, Al-Safi SA, Al-Ward HS. Spectrophotometric kinetic methods for the determination of paracetamol in pure form and pharmaceutical preparations. Iraqi J Sci. 2015;56(4A):2704-2717.
  17. Othman NS. Estimation of p-aminophenol via diazotization and coupling reaction with 4chlororesorcinol-application on paracetamol. Rafidain J Sci. 2022;31(1):35-46.
  18. Al-Sabha T, Al-Gubouri Z. Indirect spectrophotometric determination of paracetamol via decolorization of Eriochrom Black-T with N-bromosuccinimide. J Educ Sci. 2020;29(3):246-256.
  19. Mohamed M, Abdelakder H, Abdellah B. Microwave assisted synthesis of 4-aminophenol Schiff bases: DFT computations, QSAR/Drug-likeness properties and antibacterial screening. J Mol Struct. 2021;1241:130666.
  20. Aljeboree AM, et al. Validated spectrophotometric approach for determination of paracetamol in pure and pharmaceutical dosage forms using oxidative coupling reaction. AIP Conf Proc. 2022;2386(1):1-7.
