Ecological dynamics and multidimensional analysis of phlebotomine sandflies in potentially prone communities in southeastern Nigeria

This study investigates the spatial and temporal dynamics of sandfly specie abundance in some selected communities in Nigeria using multidimensional approach, including entomological survey, soil analysis and Inverse Distance Weighting (IDW) spatial interpolation. The Centre for Disease Control (CDC) light and sticky paper trap method was installed three times repeatedly in a month between 6.30 am to 6.30 pm over a period of eight (8) months (August 2022 – March 2023) while Human baits was deployed once monthly. A total of 909 insects were captured to determine the spatio-temporal abundances and 525 sandflies were caught using the human baits and for estimate of the Monthly Biting Rates (MBR). The Inverse Distance Weighted (IDW) technique was deployed for spatial mapping of specie abundance. The finding reveals distinct patterns in sandfly abundance across various months, highlighting specific trends in variability and skewness. Notably, the month of August exhibits higher variability with a wider interquartile range (IQR), indicating a dynamic ecological environment. In September, a left-skewed distribution suggests consistently higher and more stable sandfly abundance. November and March present right-skewed patterns while October and December were without significant fluctuation. January and February were left-skewed and right-skewed respectively. The spatial interpolation maps generated reveals a stronger correlation between sandfly abundance and land use types; particularly during the rainy season with values of 18.6% for Umuoba and Amuzu while 26.5% for Ihube in contrast to 6.1%, 7.0% and 13.2% for Umuoba, Amuzu and Ihube in dry season respectively. This suggests a spatial pattern aligning with land use types at different location, influenced by environmental conditions and microclimate. Soil analysis results revealed that sulphate ion appeared to be associated with favoured breeding sites for these sandflies. This breeding pattern is suggestive of intense biting activities observed during the early mornings and evenings of the rainy season as against reduced biting activity in the dry season. Ihube community recorded higher specie abundance oscillating between August and October. This study underscores the value of multidimensional approach in understanding sandfly ecology, with implications for vector control and public health intervention strategies.

Illustrations explain the paper; charts are replotted from the paper's own table values.

AI-generated illustration

↗ Enlarge

Seasonal Sandfly DynamicsClose ×

AI-generated conceptual illustration (Phlebotomine sandflies in a rural Nigerian landscape). It explains the idea and does not show study data.

Open full-size image ↗

Replotted from source data

↗ Enlarge

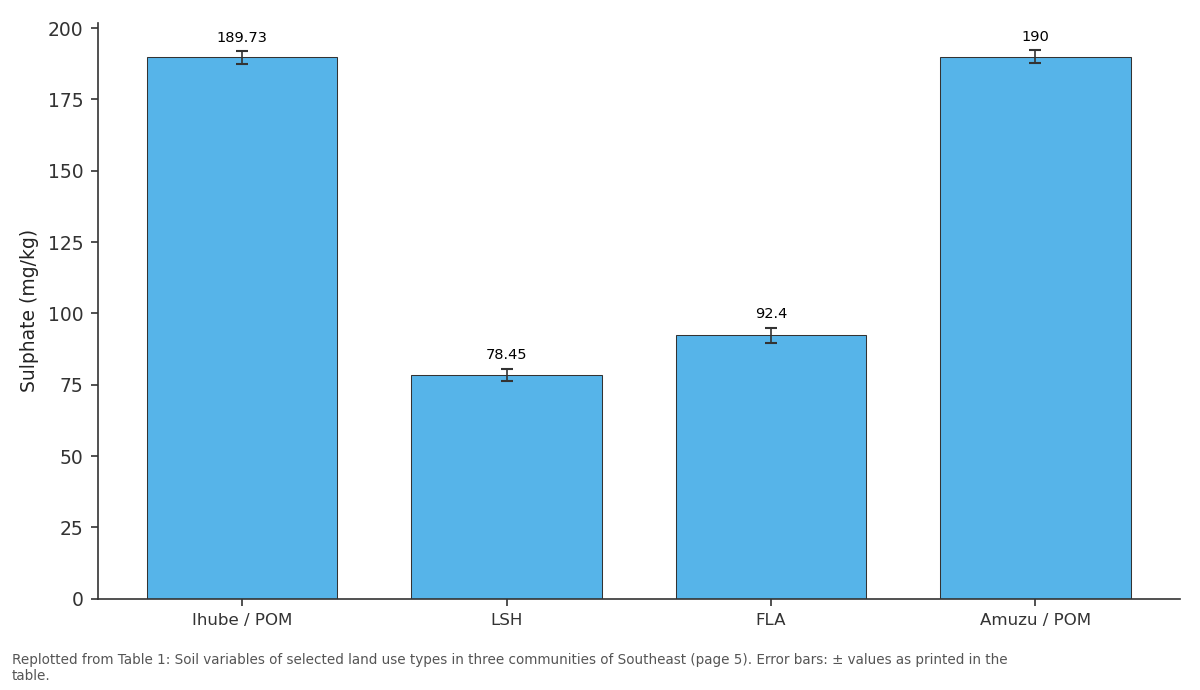

Sulphate (mg/kg): Ihube / POM vs LSH vs FLA vs Amuzu / POMClose ×

Replotted from Table 1 (page 5) of the original paper. Every bar is the paper's own table value.

Open full-size image ↗

Introduction

Phlebotomine sandflies, belonging to the Psychodidae family, are naturally diminutive and relevant family of the insect world. These tiny dipterans, measuring 1.25 -2.5mm long, are known for their dual roles as vectors of disease transmission of many parasitic, bacterial and viral diseases as well as an integral component of the ecosystem saddled with the functions of nutrient cycling and ecological interaction (Faraj et al., 2016; WHO, 2017) [4,22] . These blood feasting creatures are responsible for diseases including leishmaniasis, bartenellosis and rift valley diseases of known global impact (WHO, 2017) [22] . These diseases are vector borne and account for 17% of infectious diseases with millions of deaths each year (WHO, 2017) [22] , an alarming figure which calls for a major public health concern locally and globally. Understanding the ecological dynamics of these elusive insects is of paramount importance, not only from a public health perspective but also in the broader context of biodiversity conservation and ecosystem management. The activity of sandflies is nocturnal but some species bite during daylight. Their activity starts after sun set and ends before the sun rise with a highest peak activity after midnight. The flight pattern of sandflies is a series of short erratic hops as they are poor fliers and has a flight range up to 2 km. Morphologically, the males and females of this subgenus are easily identified from another subgenus of Phlebotomus. The females have a completely segmented spermatheca with long terminal knob, while the males of the group have a short style, five relatively long spines on the style and no tufted process on the coxie. Both sexes feed on plant juices though; the females require a blood meal in order to lay her eggs. Larval development takes 30 -60 days in rich organically moist micronutrient (Inceboz, 2019) [10] . Sandflies normally live between 30 and 45 days and females are having longer longevity than that of males. However, their distribution and abundance are intricately linked to various environmental and climatic factors.

Research has highlighted the significance of soil composition, vegetation cover, temperature and humidity in modifying sandfly population and longevity duration (Chafika et al., 2015; Ready, 2013) [3,13] . Many studies have revealed that weather patterns can provide a favourable condition for the distribution of sandflies and possible transmission of leishmaniasis in endemic areas. Cutaneous leishmaniasis is known to be higher in areas with daily rainfall, maximum and minimum temperature, and humidity. These environmental factors occurred in most hyperendemic areas of cutaneous leishmaniasis, compared to the lower endemic areas (Abolfazi et al., 2021) [1] . Globally, about 14 million people throughout Africa, Europe, Asia, and America are directly affected by the disease (WHO, 2018) [23] . The global burden of leishmaniasis has been stable for years, with a morbidity of 2.4 million Disability Adjusted Life Years (DALYS) and a mortality of approximately 70, 000 deaths which is obviously ranking high among infectious diseases (WHO, 2017) [22] . According to a report published by the world health organization (WHO) in 2019, the annual incidence of leishmaniasis has been estimated to range from 700,000 to 1.2 million in the world. This incidence is estimated to be more than 12 million cases worldwide and 1.5 to 2 million cases is added to this rate annually. 75% of these cases have been reported to be cutaneous in form and are hard to treat as there are no available vaccines yet (Seid et al., 2015) [17] . In recent past, the risk of emergence of Neglected Tropical Diseases (NTDs) has considerably increased in Nigeria. The Nigeria Federal Ministry of Health (FMOH) recognizes nine diseases namely; Trachoma, Leishmanaisis, Trypanosomiasis, Dengue Fever, Schistosomiasis, River Blindness, Lymphatic Filariasis, Onchocerciasis and Soil Transmitted Helminthes. Of these diseases, most predominantly reported is the cutaneous leishmaniasis. Cutaneous manifestation of NTDs is closely associated with poor sanitation, migration, lack of safe water, malnutrition and poverty which are precursors to morbidity and stigmatization (FMH 2013) [6] . Epidemiology studies affirm that cutaneous leishmaniasis occurs mainly in the highlands of the country and is usually caused by L.aetiiopica with an estimated 50,000 cases reported annually (Aklilu et al., 2022) [2] . However, the Northern part of Nigeria has observed the highest burden of the Leishmanaisis disease, as 35% of the 23 local government areas in Kaduna state are either at risk or have the burden of the disease. Further studies in the northern hinterland of the country which evaluated the occurrence and monthly abundance of Phlebotomine sandflies affirms that 91.2% of these areas have more refuse dumps and 8.8% of the areas have broken sewage tanks which may harbour sandflies of phlebotomine specie. Therefore, this study embarks on a multifaceted investigation of Phlebotomine sandflies within three communities in Imo State, Nigeria. The overall research objective is to underscore the ecological dynamics governing the distribution, abundance, and seasonal variations of these vectors within the unique ecology of these communities. To achieve this task, will require a multifaceted analytical approach including entomological survey, spatial interpolation technique and edaphic analysis to explore the complexity of sandfly ecology within their diverse habitats.

Materials and Methods

Materials and Methods

Study area

The field study, indicated in Fig [12] with an average annual temperature above 20 o C (68.0 o F) creating annual relative humidity of 75% with humidity reaching 90% in the remaining season. The vegetation is a tropical rainforest, characterized of tall trees and rich in humus soil. The study sites encompass many communities from three local government areas drawn from two zones. Nine sampling locations were selected, three from each of the selected communities. These communities were selected according to unique characteristics which cut across proximity to water bodies, sand/loamy soil and rural and peri-urban areas endemic with gardens and farms. These characteristics provide potential breeding sites for sandflies (Ullah et al., 2016) [18] .

Sandfly collection and identification

To investigate the influence of ecological and climate parameters on the abundance and distribution of sandflies, a CDC light and sticky paper traps were deployed. These traps are effective for conventional method used for insect collection (Ullah et al., 2016) [18] . This activity was conducted by sunrise till sunset as the flies are usually active during 6:30am and 6:30pm. The trap was suspended in farmlands, palm oil mills and livestock homes with the ice block hung beside the CDC trap. This is to cool the environment and attract sandflies. The CDC light trap with ice was used as shiny surfaces to attract the sandflies. The population size of sandflies was investigated and the genera encountered identified. The sticky paper traps were made from cardboard sheets of about 20cm by 20cm coated with castor oil and a light source suspended at about 1.5m above the ground. Both temperatures and relative humidity were measured in situ.

Human Bait technique

Three trained volunteers were used as human baits for the purpose of estimating the biting rate of sandflies in the study area. Simple bait involving 'feed on host and capture' technique conducted between the hours of 6:30am and 6:30pm once a month for a period of 8months was applied for this exercise. The caught sandflies were secured in specimen tubes and identified from other insects following the taxonomic methodology proposed by Galati et al. (2018) [7] . The entrapped sandflies were washed in 90% ethanol for 2-5mins to remove oil and other debris and was transferred to specimen tubes containing 70% glycerin for preservation and proper identification.

Soil samples, collection and analysis

Soil parameters including pH, organic carbon, organic matter, moisture content, available phosphorus, nitrates and the presence of sulphate were analyzed following rigorous established Standard Operating Procedures (SOPs) throughout the entire process. Sample collection, preparation, analytical techniques and quality control were analyzed as part of the step taken to maintain consistency and precision. Each analysis was conducted using calibration equipment and verified methods in accordance with ISO -17025.

Data analysis

Measured variables were analyzed using descriptive statistics with the aid of the SPSS-22 edition. The One-way Analysis of Variance (ANOVA) was used to determine the homogeneity in mean abundance of the insect studied and biting rates across the study locations at p<0.05. The Duncan Multiple Range test was used for mean separation. The Pearson's correlation (r) was used to determine possible relationships between the climatic variables, edaphic parameters and sandfly abundances at both p<0.05 and p<0.01. The student's t-test was used to compare seasonal abundances and biting rates of the organism at the 95% confidence limit. Inverse Distance Weighted (IDW) technique, a spatial analyst tool in ArcGIS 10.5 was used to predict the distribution trend of sandflies across the different locations in Imo State

Results and Discussion

Results and Discussion

Physicochemical influences in land use types

Soil properties of three land use types in Ihube, Amuzu and Umuoba, in southeast Nigeria were analyzed and presented in Table 1. The pH of Ihube soil has a corresponding pH of 5.82±0.23, 5.61±0.21 and 4.91±in POM, LSH and FLA respectively (Table 1). This range of pH (4.91-5.82) of soils of Ihube area indicates slightly acidic soil reactions. Similarly, Amuzu and Umuoba communities relatively share same range of soil pH across the different land uses ranging from 4.3±0.18 in FLA to 5.85±0.11 in POM (Table 1), showing a very strong to strong acid reactions (Adebayo et al., 2009). The status of the soil nitrate in POM across the three communities were relatively higher (23.6±0.41) compared to LSH (18.8±0.34) and FLA (16.0±0.23) (Table 1). This variation could be attributed to soils having varying capacities to retain or release nitrate concentration. Organic carbon relatively occurred in low amounts with just slight differences in concentrations in the different land use type across the three communities (1.49±1.36 -2.11±1.23). However, moderate to high amounts was observed in the increasing order of 1.52±1.5 > 1.7±1.28 > 2.11±1.23 for FLA, LSH and POM respectively. These levels of organic matter are at variance compared to other land use types (Faraj et al., 2016) [4] , The concentration of phosphorus in POM was slightly higher and in the range of 17

—	Ihube	—	—	Amuzu	—	—	Umuoba	—	—
Variables	POM	LSH	FLA	POM	LSH	FLA	POM	LSH	FLA
pH (H2O)	5.82±0.23	5.61±0.21	4.91±0.15	5.8±0.11	5.62±0.22	4.92±0.14	5.64±0.22	5.2±0.13	4.3±0.18
Nitrate (mg/kg)	23.6±0.41	18.8±0.34	15.9±0.30	22.9±0.25	18.5±0.29	16±0.23	22.2±0.37	18.1±0.21	16.1±0.28
Organic matter (mg/kg)	2.11±1.23	1.7±1.28	1.52±1.52	2.1±1.32	1.8±1.29	1.5±1.21	2±1.29	1.9±1.23	1.49±1.36
Phosphorus (mg/kg)	19.89±0.20	16.44±0.19	13.67±0.21	18.5±0.38	16.2±0.26	14±0.26	17.11±0.29	15.96±0.30	14.34±0.29
Organic carbon (mg/kg)	1.22±1.34	0.99±1.29	0.88±1.40	1.3±0.99	0.85±0.50	0.89±0.42	1.38±0.23	0.99±0.52	0.87±0.43
Sulphate (mg/kg)	189.73±2.34	78.45±2.18	92.4±2.62	190±2.26	78.2±2.52	91.3±2.42	188.6±2.34	77.95±2.29	90.2±2.32
Moisture cont (%)	3.2±0.56	3.4 ±0.46	3±0.52	4±0.71	4±0.51	3.8±0.40	2.4±0.48	2.8±0.40	2.2±0.41

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image

↗ Enlarge

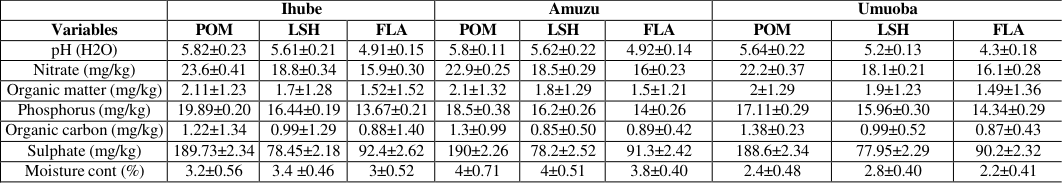

Table 1Close ×

Soil variables of selected land use types in three communities of Southeast

Open full-size image ↗

Original paper tableSource PDF · page 5 ↗

Temporal influences in specie (sandfly) abundance across the 3-communities

The boxplot in Figures 2a,b andc is used to visually represent and compare the sandfly abundance across the three communities: Amuzu, Ihube and Umuoba. In comparison of the boxplots across the different months in Amuzu community as represented in Figure 2a observed that the median in the month of August was higher and in contrast with median values for October and March. However, a wider interquartile range (IQR) was observed for August, October and March, indicating a wider variability in sandfly abundance. The months of September, November and February, the median values remained relatively stable while the median values in the months of December and January exhibited a non-normal distribution due to the absence of prominent median, suggesting a distribution with significant skewness. In Ihube community, as presented in Figure 2b, observed that the median values in August exhibited higher variability with a wider IQR while in September, the median value observed a left-skewed distribution. In contrast to the value trend in September, the median values of both November and March were to the right distribution trend while median values for October and December were observed to be consistent without significant fluctuations. Median values for January and February were left-skewed and rightskewed respectively. In Umuoba community, the distribution patterns as presented in Figure 2c revealed that the median values for October, November and February were right-skewed with higher variability (wider IQR) while median values for August, September, December and March were relatively stable. In contrast, median value for January was observed to be non-normal with the absence of a prominent median trend. The analysis of temporal distribution pattern of sandflies across Amuzu, Ihube and Umuoba, suggests the median abundance of sandflies in the months of August may be associated simultaneous increase in both rainfall and relative humidity during this period (Usman et al., 2020) [19] . The increased variability suggests that the abundance of sandflies during August can vary significantly, and potentially influenced by multiple environmental factors, breeding site availability and other ecological dynamics (Fatima Zahra et al., 2022) being highly sensitive to environmental conditions tend to thrive in environments with optimal moisture levels. In contrast, the month of September, November and February were characterized as relatively stable in terms of sandfly abundance. This stability might be attributed to constant environmental conditions where moderate levels of rainfall and related humidity creates s favourable but not excessive habitat for sandflies. However, the non-normal distribution of sandfly abundance in December and January, as indicated by the absence of a prominent median suggests a different ecological scenario. The erratic median values during these months could be associated with a combination of factors, including possible fluctuation of relative humidity and microclimate variability. Sandflies may encounter challenges during this period due to the reduced availability of breeding sites or less favourable conditions, leading to a more scattered distribution of abundance.

Influences in seasonal dichotomy of sandfly abundance of different land use types

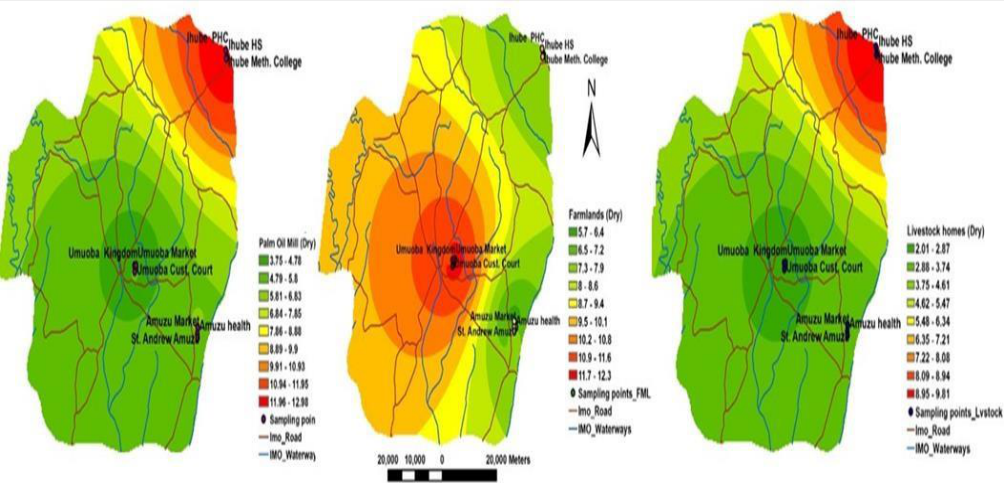

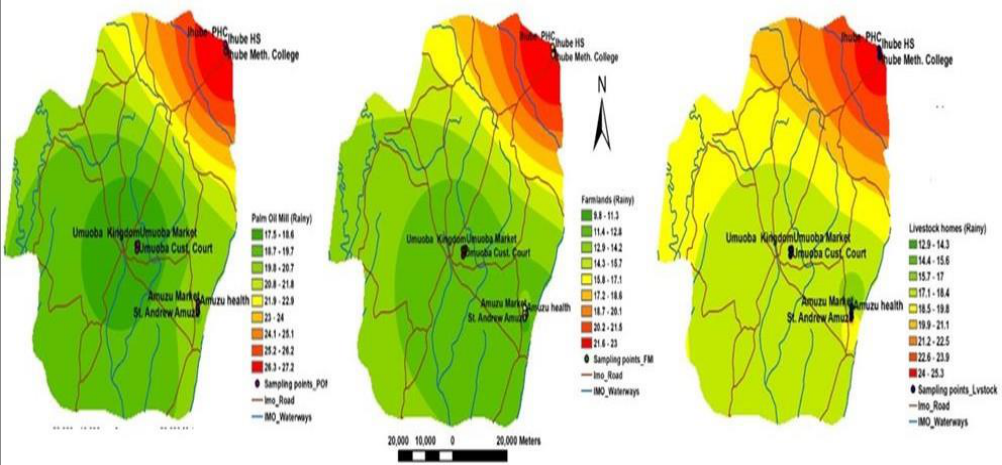

In Figures 4 and5, presents a comparative analysis of sandfly abundance during the raining and dry seasons, shedding light on the dynamics and ecological patterns observed throughout the year. The rainy season recorded specie abundance of 18.6% for Umuoba and Amuzu while 26.5% was recorded for Ihube. These values contrasted with specie abundance of 6.1%, 7.0% and 13.2% recorded for Umuoba, Amuzu and Ihube respectively, in the dry season. This result suggests that Ihube community remained relatively a favourable habitat for prevalence of sandflies, as it recorded greater abundance during the rainy season (Fig 4). This can be attributed to the optimal environmental conditions occasioned by raining season and perceived longterm activities of herders whose cows' droppings and slaughter sites allow sandflies prevalence in the area. Farmlands at Umuoba also recorded substantial sandflies abundance due to the close proximity of the sampled sites to waterways, which provided favourable humid breeding sites for replication (Usman et al., 2020) [19] . However, the dry season observed unfavourable for sandflies to thrive around Ihube farmlands (Fig 5) due to the very hot weather that suggests high temperature and reduced humidity, creating conditions that are less favourable in sustaining their breeding sites (Kasap and Alten 2013; Ikpeama et al., 2018) [13, 11] .

↗ Enlarge

Figure 5Close ×

Average specie (sandflies) abundance of different land use types in the dry season across the sampling locations

Open full-size image ↗

Original paper figureSource PDF · page 7 ↗

↗ Enlarge

Figure 4Close ×

Average specie (sandflies) abundance of different land use types in the rainy season across the sampling locations

Open full-size image ↗

Original paper figureSource PDF · page 6 ↗

Estimated monthly biting activities of sandfly across the study locations

The presented data in Fig 3 shows hourly biting the activities of sandflies at various months across studied location. During this period, a total of 525 sandflies were captured, providing valuable insights into the seasonal dynamics of their activity. The months of August, September and October had peak values of 79, 70 and 40 for Amuzu, Ihube and Umuoba respectively compared to February and March with values of 20, 2 and 30 for Amuzu, Ihube and Umuoba respectively. However, November and January practically did not experience any viable bite as illustrated in Fig 3 . The observed prevalence during the raining season aligns with expectations, given the well established link between sandfly abundance and climatic conditions favouring their proliferation. The higher prevalence in the raining season is consistent with the notion that sandflies thrive in environment characterized by increased humidity and suitable breeding conditions. The implication of this provides insight in assessing the potential risk of disease transmission in the studied area.

↗ Enlarge

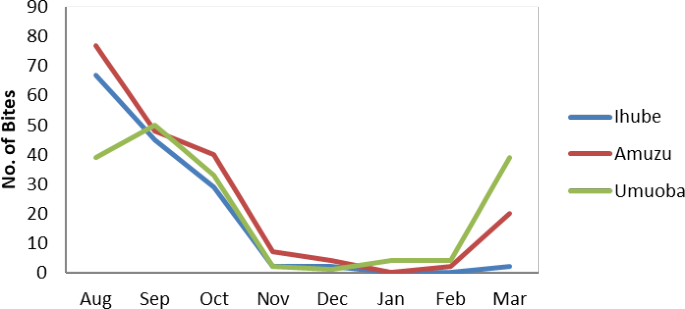

Figure 3Close ×

Average Monthly Biting Rate (MBR) across Ihube, Amuzu and Umuoba

Open full-size image ↗

Original paper figureSource PDF · page 6 ↗

Conclusion

The study has established higher prevalence of sandfly in the raining season occasioned by increased humidity and suitable breeding conditions. Therefore, the observed seasonal pattern in sandfly biting activities emphasizes the need for comprehensive strategies to manage and mitigate the potential impact on disease transmission. The study contributes valuable data to the broader understanding of the ecological dynamics of sandflies and provides a foundation for evidence-base public health intervention in the studied communities.

Acknowledgement

Conflict of interestThe authors declared that there is no conflict of interest regarding the publication of this manuscript

Figures and tables from the paper

↗ Enlarge

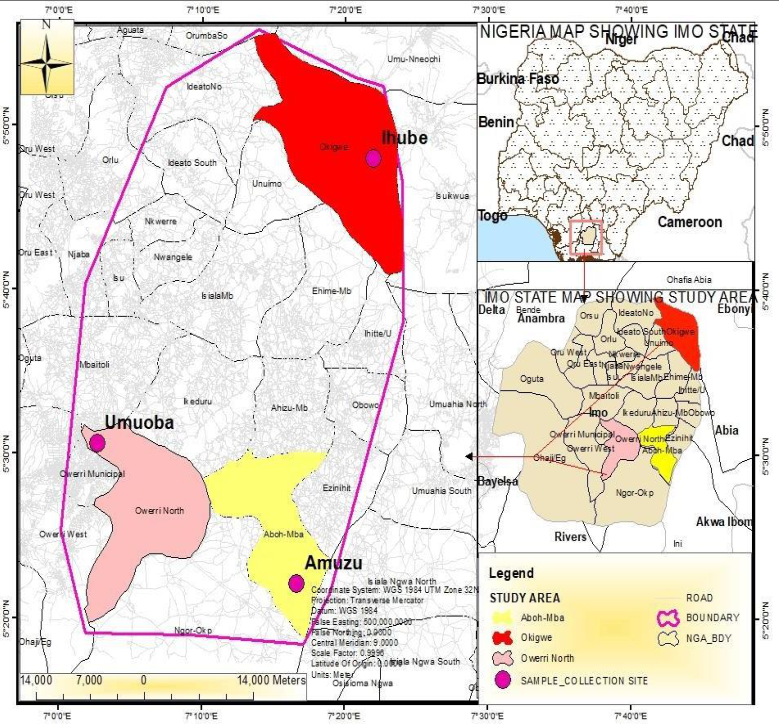

Figure 1Close ×

Imo West or Orlu zone, Imo East or Okigwe zone and Imo Central or Owerri zone

Open full-size image ↗

Original paper figureSource PDF · page 3 ↗

↗ Enlarge

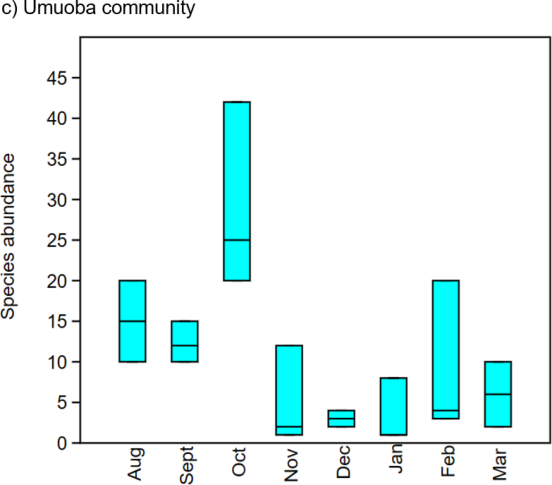

Figure 2Close ×

a, b, & c: Temporal specie (sandflies) abundance across Amuzu, Ihube and Umuoba communities

Open full-size image ↗

Original paper figureSource PDF · page 6 ↗

1. Abolfazi M, Salman K, Hamidreza H, Azadeh A, Shahram A, Abedin S, et al. An investigation of the effects of environmental factors on cutaneous leishmaniasis in the old world: A systemic review study. Journal of Environmental Health. 2021;36(1):117-128.
2. Aklilu E. Phlebotomine Sandflies (Diptera: Psychodidae) of Ethiopia. 2022.
3. Chafika F, El Balchir A, El Rhazi M, Btissan A. Distribution and bionomics of sandflies in five ecologically different cutaneous foci in Morocco. Epidemiology. 2015;13:1-7.
4. Federal Ministry of Health Nigeria. Master Plan for Neglected Tropical Disease (NTDs). Abuja: Federal Ministry of Health. 2013-2017;142Ministry.
5. Inceboz T. Epidemiology and ecology of leishmaniasis in neglected tropical diseases. Intechopen. 2019;7(2):34-38.
6. Ikpeama CA, Obiajuru IOC. Bionomics of sandflies (Diptera: Psychodidae) in some remote communities in Ezinihitte Mbaise, South-Eastern Nigeria. Biological Sciences. 2018;2:19-28.
7. Kasap OE, Votypka J, Alten B. The distribution of the Phlebotomus major complex (Diptera: Psychodidae) in Turkey. Acta Trop. 2013 Sep;127(3):204-211.
8. Ready PD. Biology of phlebotomine sand flies as vectors of disease agents. Annual Review of Entomology. 2013;58:227-250.
9. Seid A, Gadisa E, Tsegaw T, Abera A, Teshome A, Mulugeta A. Risk map for cutaneous leishmaniasis in Ethiopia based on environmental factors as revealed by geographical information systems and statistics. Geospatial Health. 2014;8:377-387.
10. Ullah KNH, Khan AIN, Minir SA, Wahid S. Assessing incidence patterns and risk factors for cutaneous leishmaniasis in Peshawar region, Pakistan. Pakistan Journal of Parasitology. 2016;102:501-506.
11. Usman M, Natala AJ, Jatau ID, Ogo NI, Balogun EO, Lawal MD, Mahmuda A. Nigerian Journal of Parasitology. 2020;41(1):109-113.
12. World Health Organization (WHO). Leishmaniasis: Available at http://www.who.int/news.room/fact.sheets. (Accessed 18 September, 2022).
13. World Health Organization. WHO report on surveillance of antibiotic consumption: 2016-2018 early implementation.
