Aquatic plant (Aquatic Weed) potential ingredients for fish feed

Aquaculture and fisheries continue to be important sources of food, future earnings, nutritional security as well as economic opportunities for hundreds of millions of people worldwide. Fish as the inexpensive source of animal protein accounts for a significant portion of the worldwide food supply, as well as the global fish production sector has the challenge of increasing output to satisfy future protein demand. India has witnessed the growth of freshwater aquaculture from backyard farming to a commercial fish culture where carp remains a mainstay of Indian aquaculture contributing about 87% of the total aquaculture production of our country. In aquaculture practices feed and feeding management practices are play a vital role, about 50-60% of production cost used for feeding management. Nowadays high cost and fluctuating quality of fish meals have led to the need to discover alternative protein sources for feed formulation, considerable emphasis has been focused on the use of the conventional plant, oilseed meals, including soybean, groundnut, cottonseed, and rapeseed meals. The utilization of leaf protein concentrates as dietary feed additives have considerable promise due to the practicality of synthesizing a high-quality protein from tropical and subtropical aquatic plants leaves.

Illustrations explain the paper; charts are replotted from the paper's own table values.

AI-generated illustration

↗ Enlarge

Aquatic Plant Feed CycleClose ×

AI-generated conceptual illustration (Duckweed and water hyacinth plants, processed protein powder, and tilapia fish). It explains the idea and does not show study data.

Open full-size image ↗

Replotted from source data

↗ Enlarge

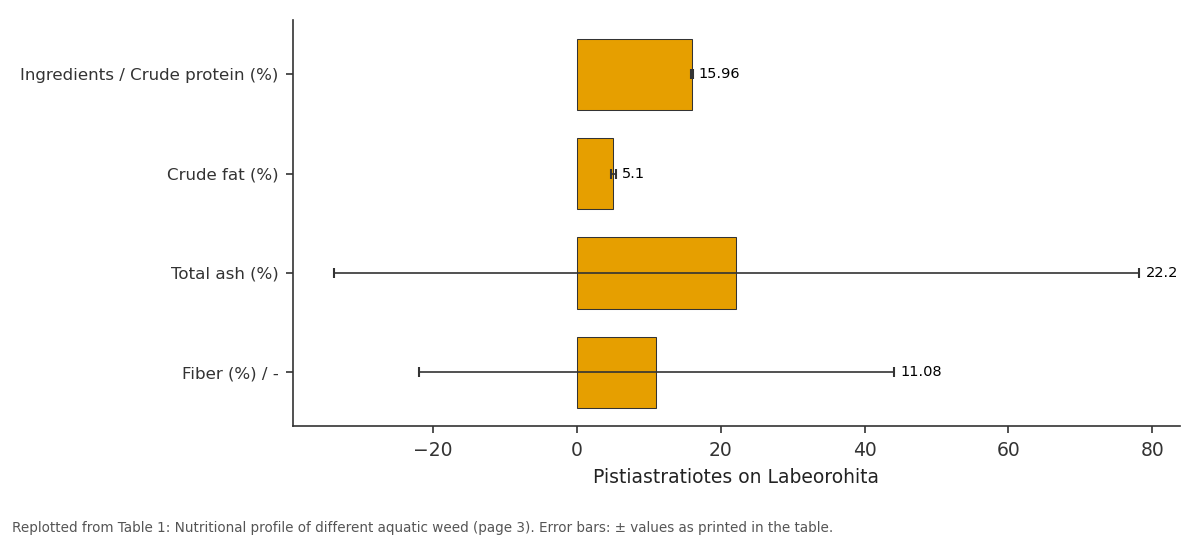

Pistiastratiotes on Labeorohita: Ingredients / Crude... vs Crude fat (%) vs Total ash (%) vs Fiber (%) / -Close ×

Replotted from Table 1 (page 3) of the original paper. Every bar is the paper's own table value.

Open full-size image ↗

Replotted from source data

↗ Enlarge

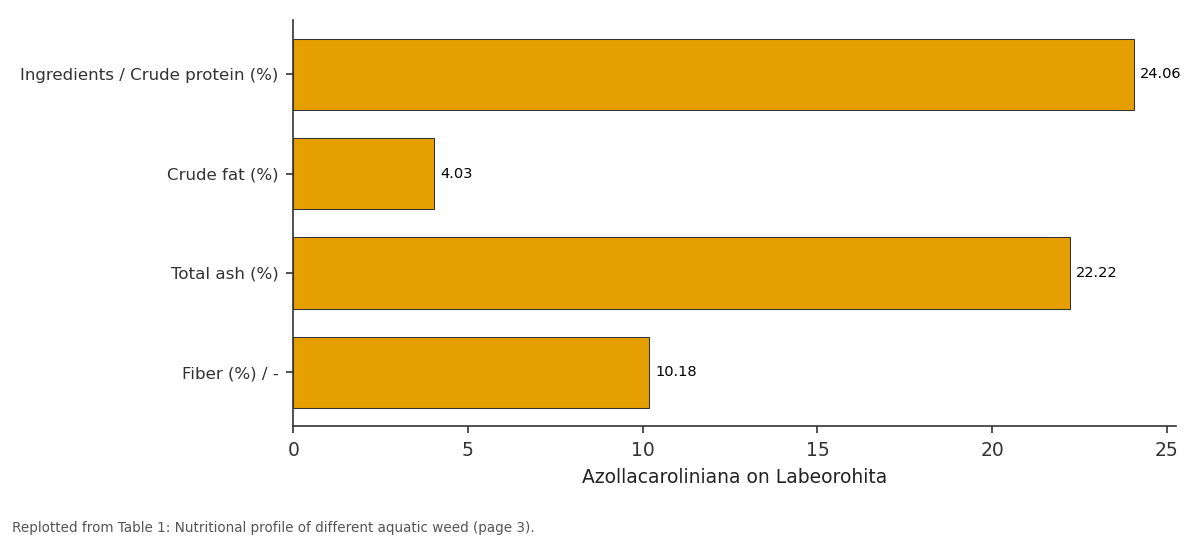

Azollacaroliniana on Labeorohita: Ingredients / Crude... vs Crude fat (%) vs Total ash (%) vs Fiber (%) / -Close ×

Replotted from Table 1 (page 3) of the original paper. Every bar is the paper's own table value.

Open full-size image ↗

Introduction

Aquatic plants are vital, inexpensive, and easily available feed ingredients as well as act as a bio-fertilizer. Aquatic plants are a very good source of protein. It replaces the animal source protein in fish feed. Plants that have evolved to live in water are known as aquatic plants (saltwater or freshwater). They are almost always known as hydrophytes and macrophytes. Aquatic plants in lakes and rivers provide shelter for fish, habitat for aquatic invertebrates, produce oxygen, and serve as nourishment for several fish and wildlife. Plants are found in freshwater, brackish water, and marine water, aquatic plants are found in marine water known as seaweed and seagrass. Seagrass spends its whole life cycle underwater, with filamentous pollination that's also specifically adjusted to dispersal in an aquatic environment and ribbon-like leaflets that lack stomata. Macrophytes are aquatic plant that grows in or near water and is floating, emergent, submerged, or marginal. Floating plants freely float on the surface of water and roots hang underneath. Floating plants such as Lemma (Duckweed), Pistia (water lettuce/water cabbage), Azolla (Bio-fertilizer), Wolffia, Eichhornia water hyacinth), Spirodela and Salvinia are found in different types of water resources. Emergent plants are rooted in the bottom of the pond but their leaves float on the water surface. Emergent types of plants such as Nymphea (water lily), Nelumbo (Lotus), Nymphoides (floating heart), Myriophyllum (Watermill foil), Trapa bispinosa (water chestnut), Euryale Ferox (Fox nut). Submerged plants grow under the water surface and may or may not be rooted. 1st one is rooted in plants like Hydrilla, Najas, Vallisneria (eelgrass), Potamogeton, Ottelia, and 2nd one is rootless Ceratophyllum and Utricularia. Marginal plants grow along the shoreline of the ponds. Marginal plants are found in different types that is Sagittaria (Arrowhead), Ipomoea (morning glory), Typha (Cattail), Cyperus, Colocasia (Elephant ears), and Marsilea. In the ecosystem, aquatic plants provide food and shelter for sea/freshwater creatures, as well as soil stability, which helps to avoid erosion of shorelines, ponds, and lakes. Aquatic plants' adaptation is visible in their structure, which includes deeply dissected and waxy leaves, specialized pollination mechanisms, and growth pattern variation. Adaptation determines the plant types. Because cuticles inhibit water evaporation, several aquatic plants do not require or have thin cuticles. Because they do not need to retain water, macrophytes maintain their stomata open at all times. On each side of their leaves are several stomata. Aquatic plants have less rigid structures since water pressure supports them. Plants' leaves are flat on the surface because they need to float. They can float because they have air sacs. Because their roots are relatively small, water can peacefully flow into the leaves. Their roots are light and feathery since they do not need to prop up (give support) the plants. Roots are specialized to take in oxygen. Many weeds species as food for fish or encourage the growth of the phytoplankton and zooplankton, in turn encouraging fish production. Water hyacinth sometimes acts as a good dwelling place or hiding place for fish. Weeds that grow in clean bodies of water could be used as animal feed. Water hyacinth has the capability of absorbing toxic metals through untreated wastewater generated by industrial. They have been used in cottage industries to make carpets, tablecloths, netting, baskets, and other items. They have high organic matter and so it used in biogas production. Water hyacinth is also utilized to regenerate alkaline soils. Mercuric products and cadmium, lead, zinc in water were efficiently absorbed by Azolla and so it is used to remove the heavy metals. Azolla is also utilized in the generation of biogas as well as biomass. It is also used in rice fields for having nitrogen-fixing bacteria. From the flowers of the water hyacinth, a dye is extracted for ink preparation. After the decomposition of aquatic weeds, we can get good organic manure. It acts as feed for carps. This system is exploited in controlling aquatic weeds. The aesthetic value of some plants is because of their beautiful flowers such as Nymphaea as well as Nelumbo species. Fruits, seeds, rhizomes of Nelumbo have high therapeutic potential. Extracts of Nelumbo cristata is having hepatoprotective properties and prevent damage to the liver. Lemna species absorbs toxic metals like arsenic and uranium and is also used in the bio-remediation of water. Pistia stratiotes can excess nitrogen and phosphorus in the water.

Aquatic weed used as an alternative source of fish feed Duckweed, (Lemna polyrhiza)

The suitability of dried duckweed, Lemna polyrhiza as an aquatic plant feed ingredient for Labeo rohita fingerlings. They concluded that duckweed-incorporated diets resulted in a little less growth of fish as compared to the control diet with a fish meal (Das and Ray, 1989) [3] . There are eight isonitrogenous (35 percent crude protein) as well as isocaloric (4.2 kcal g/1) diets available, all of which contain unprocessed and fermented duckweed (Lemna polyrhiza) plant leaves meal around 10%, 20%, 30%, and 40% concentrations. They isolated Bacillus sp. as from the intestine of Common carp, which has extracellular amylolytic, cellulolytic, proteolytic, and lipolytic activities, and used it to ferment leaf meal, resulting in a reduction in fiber content from 11.0 percent to 7.5 percent, as well as reductions in anti-nutritional factors tannin and phytic acid, from 1.0 percent to 0.02 percent and 1.23 percent to 0.09 percent, respectively (Bairagi et al., 2004) [1] . The dietary protein source for Cyprinus carpio (Common carp) fry is duckweed, Lemna minor. Diet prepared with 32% crude protein, incorporation of dried duckweed in different treatment with various inclusion levels 5%, 10%, 15%, and 20%. After 90 days experimental period result obtained in common carp the diet consisting of up to 20% inclusion level could be used as a complete replacement for commercial feed in diet formulation of common carp fry (Yilmaz et al., 2004) [19] .

Water hyacinth leaf

The utilization of water hyacinth leaf meal in the diet of fish feed. 40% water hyacinth incorporated diet and showed best growth performance in all the diet combinations they have tested (Vhanalakar et al., 2016). The fish meal cannot be replaced, however, it can be supplemented with water hyacinth up to 40% of the ideal level to generate a costeffective diet that promotes the growth of Cyprinus carpio (Mohapatra, 2015) [9] . The impact of various fermentation procedures on the nutritional quality of water hyacinth (WH) on Nile tilapia fingerlings. Fresh dry hyacinth (FH), molasses-fermented hyacinth (MF), cow rumen-fermented hyacinth (RF), and yeast-fermented hyacinth (YF) are some of the varieties of hyacinths available. Molasses-fermented performed better than yeast-fermented as well as cow rumen-fermented hyacinth. Their findings suggested that when WH is included at a 20% inclusion level in Nile tilapia diets, fermentation may not be required (El-Sayed et al., 2003) [5] .

Water hyacinth leaf meal

The Water hyacinth leaf protein concentrate (WHLPC) in P. monodon fed diets. Used different type inclusion levels of (WHLPC) 0%, 25%, 50%, and 75%in four different treatments respectively. Results obtained after 60 days experimental shrimp have the best growth and survival this result indicated that soybean meal dietary protein can be replaced by WHLPC till 57% without any adverse effect in Penaeus monodon (Chavez et al., 2014) [2] .

Water lettuce (Pistia stratiotes)

Water lettuce (Pistia stratiotes) is a valuable source of proteins used as fish feed ingredients in different ratios for both food and non-food uses fish. That is used for partial replacement of fishmeal with aquatic weed Pistia stratiotes meal on Labeo rohita fingerling. They did 80 days experimental period and prepared five different experimental diets with different inclusion levels 0%, 10%, 20%, 30%, 40%, 50% respectively. There is obtained maximum growth rate and better FCR in 30% inclusion level (Nisha and Geetha 2017) [12] .

Hydrilla (Hydrilla verticillata)

Hydrilla verticillata as an alternative protein source of Tilapia sp. Prepared five experimental diets with different inclusion levels 0%, 20%, 30%, 40%, 50% respectively. Obtained 10% inclusion level of Hydrilla verticillata gives the best result (Dhamayanti et al. (2016) [4] .

Aquatic fern (Azolla)

In the feed of Labeo rohita fry, Azolla protein Concentrate (APC) was blended with Spirogyra powder (SP) in a 4:1 ratio to replace fish meal. Incorporated APC -SP with different inclusion levels in fish feed. There are prepared five isonitrogenous and isocaloric diets by replacing fish meal with APC-SP in different treatment T1, T2, T3, T4, and T5 with inclusion levels 0%, 25%, 50%, 75%, and 100% respectively. Results obtained after 60 days experimental period growth performance of Labeo rohita very good, there is no mortality, histological changes not found and didn't have any adverse effect. That APC is a rich source of protein and can be used to replace 10% of fish meal in the diet of Labeo rohita fry to a maximum of 16.25 percent (Sheeno and Sahu, 2006). [19] Pistiastratiotes on Labeorohita 15.96±0.13 5.10±0.29 22.2±56 11.08±33 45.66±0. 19 Nisha and Geetha (2017) [12] Eichhorniacrassipes on Labeorohita 13.37 Nisha and Geetha (2017) [12] Duckweed (Lemna minor) Grass carp 40-60% More suitable for a better growth rate of fish Srirangam (2016) [17] Eichhornia crassipes Rohu (Labeo rohita) 20% No differences in the growth rate of Rohu Patel et al. (2016) [13] Azolla [18] Azolla meal GIFT Tilapia (Oreochromis niloticus) 15% Better for muscle quality and stress response Mosha et al. (2020) [10] Fermented Azolla Tilapia 20% Higher specific growth rate and weight gain Hundreds et al.

Conclusion

Plant-based protein (leaf meals) is expensive and sustainable feed ingredients as well as don't have any adverse effect on our environment and experimental species. Plant-based proteins are easily available in enough amounts in the environment. Plant-based feed ingredients which are used for fish feed ingredients replace many animal sources of protein in fish feed. Also, act as biofertilizers, provide shelter, provide feeding and breeding ground for any aquatic organisms. Aquatic plants have aesthetic value, application for sewage treatment plants (Eichhornia, Lemna, etc.) as well as aquatic plants are used in the paper and pulp industry.

Figures and tables from the paper

↗ Enlarge

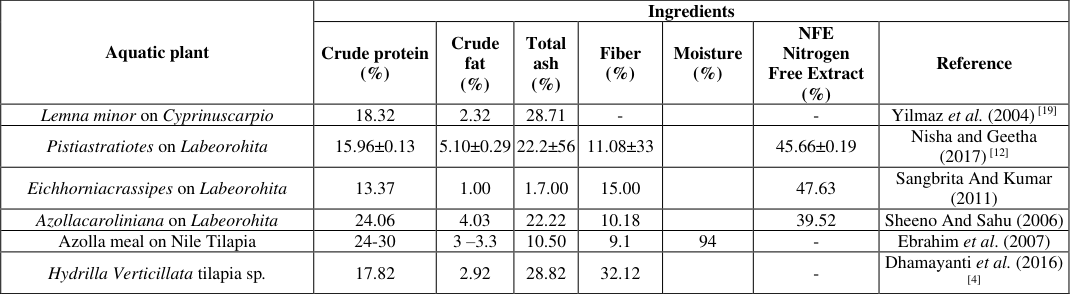

Table 1Close ×

Nutritional profile of different aquatic weed

Open full-size image ↗

Original paper figureSource PDF · page 3 ↗

Type of aquatic plants	Fish species	Level of added	Performance	Reference
Water fern (Azolla pinnata)	Rohu (Labeo rohita)	50%	Increased pancreatic enzyme activity	Maity and Patra (2008) [7]
Water lettuce (Pistia stratiotes)	Rohu (Labeo rohita)	30%	Enhanced weight gain, specific growth rate, and better feed conversion	Nisha and Geetha (2017) [12]
Duckweed (Lemna minor)	Grass carp	40-60%	More suitable for a better growth rate of fish	Srirangam (2016) [17]
Eichhornia crassipes	Rohu (Labeo rohita)	20%	No differences in the growth rate of Rohu	Patel et al. (2016) [13]
Azolla (Azolla Sp.)	Shabbout fish (Tor grypus)	20%	Higher specific growth rate and weight gain	Gokcinar and Bekcan (2015)
Eichhornia crassipes	Mrigal (Cirrhinus mrigala)	40%	Better growth and survival of fish	Vhanalakar et al. (2008) [18]
Azolla meal	GIFT Tilapia (Oreochromis niloticus)	15%	Better for muscle quality and stress response	Mosha et al. (2020) [10]
Fermented Azolla	Tilapia	20%	Higher specific growth rate and weight gain	Hundreds et al. (2018)

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image

↗ Enlarge

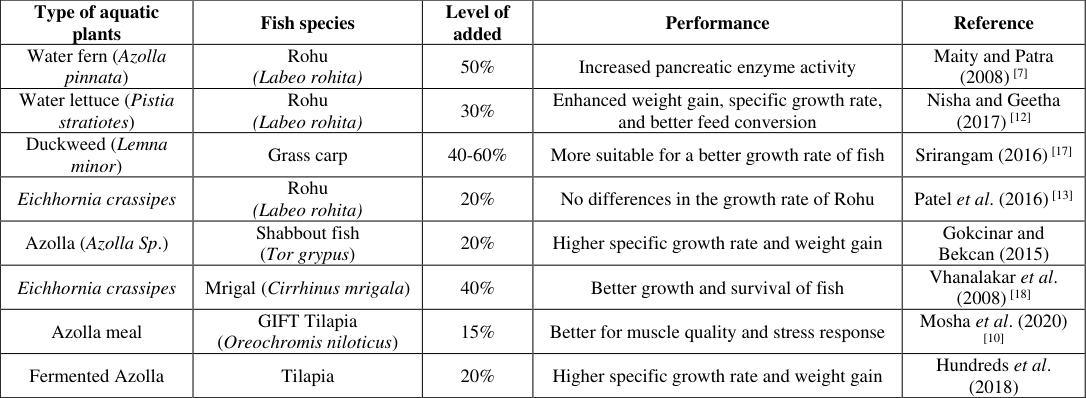

Table 2Close ×

Aquatic plants as a source of fish feed ingredient for replacement of fish meal on the diet of fishes.

Open full-size image ↗

Original paper tableSource PDF · page 3 ↗

1. Bairagi A, Sarkar GK, Sen S, Ray A. Evaluation of the nutritive value of Leucaena leucocephala leaf meal, inoculated with fish intestinal bacteria Bacillus subtilis and Bacillus circulation formulated diets for Rohu, Labeo rohita (Hamilton) fingerlings. Aquaculture Research. 2004;35(5):436-446.
2. Chavez NNG, Traifalgar RFM, Gonzaga VM, Corre LJ. Growth performance of Penaeus monodon fed diets containing water hyacinth leaf protein concentrate (WHLPC). International Journal of the Bioflux Society. 2014;6(2):195-201.
3. Das I, Ray AK. Growth performance of the Indian major carp, Labeo rohita (Ham.) on duckweed incorporated pelleted feed: A preliminary study. Journal of the Inland Fisheries Society of India. 1989;21(1):1-6.
4. Dhamayanti RR, Nursyam H, Hariati AM. Utilization of Hydrillaverticillata as alternative sources of protein in feed formulation for Tilapia (Oreochromis sp.) growth. International Journal Scientific & Technology Research. 2016;(5):03-8.
5. El-Sayed AFM. Effects of fermentation methods on the nutritive value of water hyacinth for Nile tilapia Oreochromis niloticus fingerlings. Aquaculture. 2003;218(1):471-478.
6. Gökçinar NC, Bekcan S. The Effects of Partially Replacing Fishmeal with Azolla (Azolla sp.) on Growth Parameters of Shabout Fish (Tor grypus H. 1843). Journal of Applied Biological Sciences. 2015;9(1):4346.
7. Maity J, Patra BC. Effect of replacement of fishmeal by Azolla leaf meal on growth, food utilization, pancreatic protease activity, and RNA/DNA ratio in fingerlings of Labeo rohita (Ham.). Canadian Journal of Pure and Applied Sciences. 2008;2(2):323-333.
8. Mohapatra SB, Patra AK. Effect of partial replacement of fish meal with duckweed (Lemna minor) fed on the growth performance of Cyprinus carpio fry. IOSRJAVS. 2013;4:34-37.
9. Mohapatra SB. Utilization of water hyacinth (Eichhornia crassipes) meal as partial fish protein Replacement in the diet of Cyprinus carpio fry. European Journal of Experimental Biology. 2015;5(5):31-36.
10. Mosha SS, Felix S, Manikandavelu D, Felix N, TLS SM, Menaga M. Partial Fishmeal Replacement by Azolla Meal on GIFT Tilapia (Oreochromis niloticus) Diet: Effect on Growth Performance, Antioxidant Enzymes, Immunology, and Stress Response. Acta Scientific Veterinary Sciences. 2020;2(8):17-25.
11. Murthy HS, Devaraj KV. Utility of pistia (Pistia strategies) in the diet of carps. Journal of Aquaculture in the Tropics. 1991;6(2):9-14.
12. Nisha SN, Geetha B. Effect of partial replacement of fishmeal with aquatic weed Pistia stratiotes meal on growth, biochemical composition, hematological parameters, and digestive enzymes in Indian Major Carp (Labeo rohita). International Journal of Fisheries and Aquatic studies. 2017;5(2):527-532.
13. Patel MR, Vadher KH, Mer RR, Baraiya KG, Tandel KV. Effect of partial replacement of fishmeal with Eichhornia crassipes on growth and survival of Labeo rohita (Hamilton, 1822) juveniles. Journal of Applied and Natural Science. 2016;8(3):1659-1662.
14. Ray AK, Das I. Apparent digestibility of some aquatic macrophytes in Rohu, Labeo rohita (Ham.), fingerlings. Journal of Aquaculture in the Tropics. 1994;9:335-42.
15. Saha S, Ray AK. Evaluation of the nutritive value of water hyacinth (Eichhornia crassipes) leaf meal in compound diets for Rohu, Labeo rohita (Hamilton, 1822) fingerlings after fermentation with two bacterial strains isolated from the fish gut. Turkish Journal of Fisheries and Aquatic Sciences 2011;11(2):199-207.
16. Sheena TP, Sahu NP. Use of freshwater aquatic plants as a substitute for fishmeal in the diet of Labeo rohita fry. Journal of Fisheries and Aquatic Science. 2006; 1(2):126-135.
17. Srirangam GM. Effect of partial replacement of fish meal with duckweed (Lemna minor), and soybean meal on the growth performance of Ctenopharyngodon iIdella (grass carp). International Journal of Fisheries and Aquatic Studies. 2016;4(6):133-137.
18. Vhanalakar SA, Kale MD, Waghmode SS, Muley DV. Partial replacement of fishmeal by locally available plant proteins for the Indian major carp, Cirrhina mrigala. J Aqua. Biol. 2008;23(2):209-212.
19. Yilmaz E AI, GG. Use of Duckweed, Lemna minor, as a protein feedstuff in practical Diets for Common carp, (Cyprinus carpio) fry. Turkish Journal of Fisheries and Aquatic Science. 2004;4:105-109.
