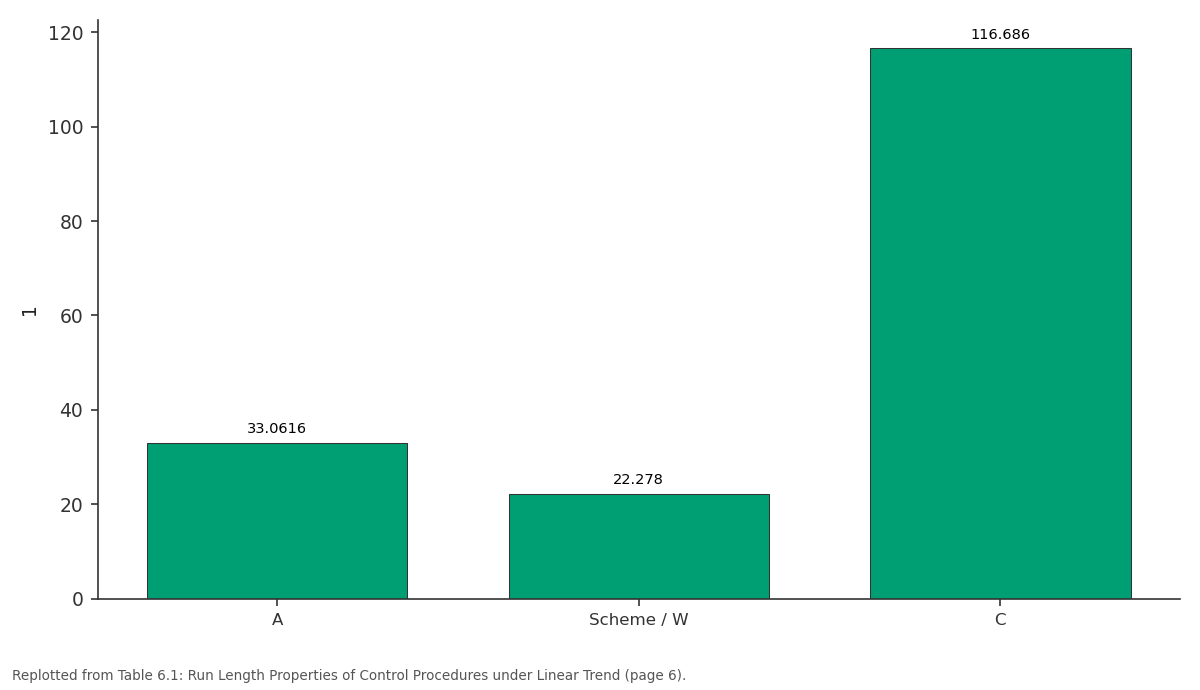

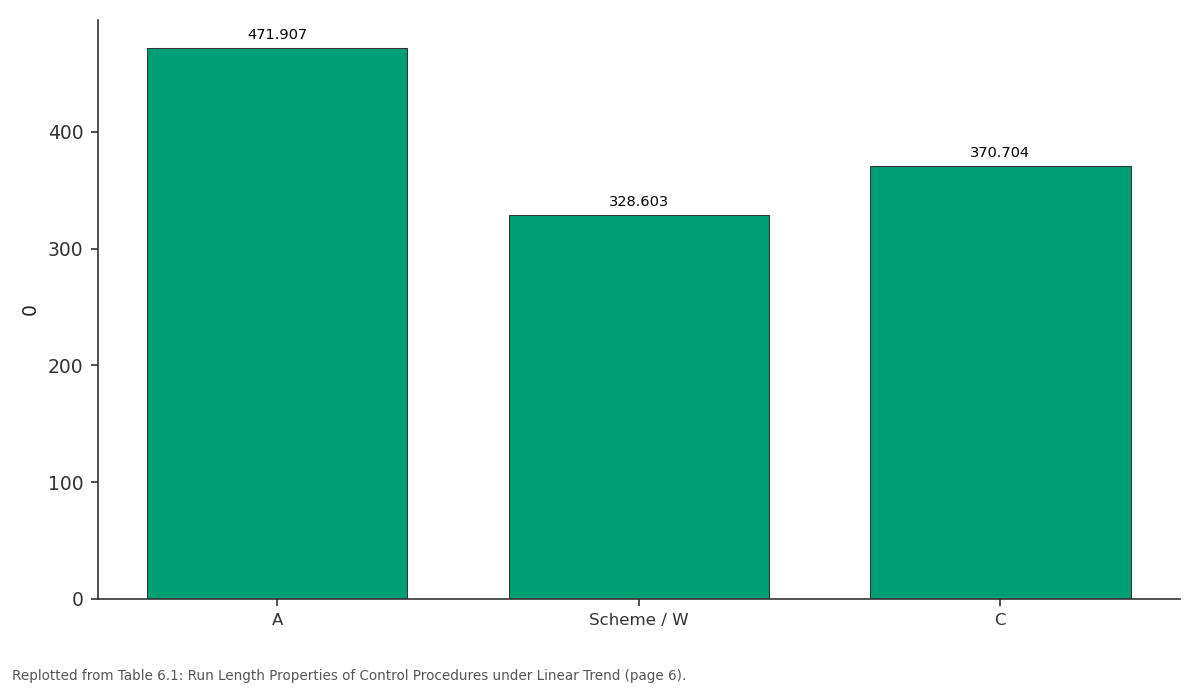

Replotted from Table 6 (page 6) of the original paper. Every bar is the paper's own table value.↗ Enlarge
0: A vs Scheme / W vs C
Replotted from Table 6 (page 6) of the original paper. Every bar is the paper's own table value.

Replotted from Table 6 (page 6) of the original paper. Every bar is the paper's own table value.

Open full-size image ↗

0: A vs Scheme / W vs C

Replotted from Table 6 (page 6) of the original paper. Every bar is the paper's own table value.

View source evidence ↗
Replotted from source data
Replotted from Table 6 (page 6) of the original paper. Every bar is the paper's own table value.↗ Enlarge
1: A vs Scheme / W vs C
Replotted from Table 6 (page 6) of the original paper. Every bar is the paper's own table value.

Replotted from Table 6 (page 6) of the original paper. Every bar is the paper's own table value.

Open full-size image ↗

1: A vs Scheme / W vs C

Replotted from Table 6 (page 6) of the original paper. Every bar is the paper's own table value.

View source evidence ↗

Figures & tables

From the original paper
1Table 4Page 32Table 4Page 33: C. Transition matrix for CUSUM scheme H, K (m + 1 states)Table 4Page 41: Signaling Table for Action & Warning ChartsTable 5Page 51: Run Length Properties of Control Procedures under Linear TrendTable 6Page 6
FULL TEXT Original article · reflowed for reading

Introduction

Cumulative Sum Schemes Control Charts were introduced in 1954 by Page (1954) [11] . These charts may be used in several situations where a production process is expected to change at an unknown time from an" in control state" to an "out of control state". As soon as one has evidence that the out of control state has observed one would wishes to stop the production process to take remedial measures. CUSUM schemes have proven to be optimal stopping rules in the sense that to minimize expected run length under the out of control state given that the stopping rules has a fixed expected run length under the in-control state Moustakides (1986) [10] . CUSUM control charts have found an interesting variety of applications since their introduction. Several researchers namely Johnson (1966) [5] , Hinkley (1970) [3] , Brook and Evans (1972) [1] , Ashish and Srivastava (1975) [14] , Hawkins (1977) [4] , Khan (1978) [8] , Koning and Does (1988) [9] , Rendtel (1990) [12] , Rogerson (2006) [13] , Cox (2009) [2] have attempted performance of CUSUM charts under various conditions. In most of the research problems the CUSUM chart performance is mainly assessed based on the Average Run Length or its distribution. In other words, the effectiveness of monitoring procedures like Shewart charts with Action limit only, control charts with Warning lines and CUSUM procedures can be demonstrated when there is a slippage in mean level from a target value. This can be done with the help of ARL or other features of run length distributions. The ARL is usually measured on the assumption of step change i.e. abrupt change from the process average. The main purpose of this paper is to assess the performance of control charts and CUSUM charts under linear trend with non-normal distribution namely, Log-Logistic. This distribution is considered because of its applications in the real world. This distribution and its importance is discussed as and when the CUSUM schemes and other control charts performance are assessed. In the subsequent sections we discuss Shewart chart with action line, control chart with warning line and CUSUM procedures.

Shewart Control Chart with Action Lines

In the construction of control charts we are using two sets of limits such as action limits or outer limits and warning limits or inner limits. When action lines point plots outside of this limit, a search for an assignable cause is made and corrective action is taken if necessary.

Shewart control chart with only action lines, it is denoted by 'Scheme A' and specified distributional assumptions, the evaluation of run length properties follows Geometric distribution with parameter that is

Where is the Probability of action limit for a specified process mean.

Shewart Control Chart with Warning Lines

In a Shewart control chart with action and warning lines we take decisions with monitoring procedures depend on preceding observations as well as the most recent value. It is denoted by 'Scheme W'. If one or more points fall between the warning line and the central line or very close to the warning line, we should be suspicious that the process may not be operating properly. One possible action to take when this occurs is to increase the sampling frequency. The use of warning limit can increase the sensitivity of the control chart. The complete run length distribution is obtained by using successive powers of the transition matrix. In particular, the ARL is found to be

Where is the Probability of a violation of warning line which includes more extreme action line violation . The action line scheme is having only two states one Transient and another one is absorbing.

Transition Matrices for Control Chart and Cusums with Log-Logistic Distribution 4.1 The Importance of Log Logistic Distribution

In Probability and Statistics, the log-logistic distribution is a continuous probability distribution for a non-negative random variable. It is used in survival analysis as a parametric model for events whose rate increases initially and decreases later, for example mortality from cancer following diagnosis or treatment. It has also been used in hydrology to model stream flow and precipitation, and in economics as a simple model of the distribution of wealth or income. The log-logistic distribution is the probability distribution of a random variable whose logarithm has a logistic distribution. It is similar in shape to the log-normal distribution but has long tails. The parameter α > 0 is a scale parameter and is also the median of the distribution. The parameter β > 0 is a shape parameter. The cumulative distribution function is

Where x > 0, α > 0, β > 0. Where, x> 0, α > 0, β > 0.

Probability density function

The kth raw moment exists only when k < β, when it is given by

Where B () is the beta function.

And the variance is

If X has a log-logistic distribution with scale parameter α and shape parameter β then Y = log(X) has a log-logistic distribution with location parameter log (α) and scale parameter 1/β. This situation is of special interest because a CUSUM appropriate to a Log Logistic distribution may be used.

4.2Transition Matrix for Control Chart

The Transition matrices representation for control charts are give below. In case of row labels refer to states at sample (i-1) and column heading to states at sample i. The upper left column partition is the reduced transition matrix after deleting row and column for the absorbing states.

The entries in the above matrix need some explanation. In the first row, all entries corresponding moves from an initial zero CUSUM, and in the first entry, it indicates that a sample i, the CUSUM remains at or below zero. This means the sample value should not exceed the reference value k. Thus For a move from state zero to H/m, the i th sample must have a value between K and (K +H/m). So that the subtraction of reference value gives a CUSUM contribution of H/m. After the discretization, (4.3.3)

Run Length Calculation under Linear Trend with Log Logistic Distribution

For calculating Run length distribution under linear trend with Log Logistic distribution, we make use of the discussion and procedure given in chapter-II. From this discussion we can obtain Transition Probability Matrix for the standard control charts viz., Action scheme, Warning scheme and CUSUM scheme.

For an illustration, consider W chart with action line at 3.09σe from a target value and warning limit at 1.96σe. Let the process slippage to a value 1.00σe from the target value, then for Log-logistic variable

The transition matrix in this case is given by

The probability of a signal at the first sample is . Squaring P, we get

The element is 0.04470. Obviously the probability of a signal a sample 2 is 0.030542. Similarly is 0.072441, gives 0.030542 is the probability run length for three samples.

In the case of non-homogenous transition matrix, it is necessary to multiply original P by new transition matrix obtained after allowing a step change in the mean level. We denote the rate of change by ∆ and we use 1 P, 2 P etc, for the first, second etc samples transition matrices are deduced. In general the Cumulative probability of signal before the i th sample is (0, m) th element of the product, i.e. 1 P 2 P 3 P-------i P.

Also

From the above calculations we get the cumulative probabilities of a signal at sample 2 is 0.008545. Subtracting the (0, m) th element of 1 P gives 0.00367. The above computations are presented for the sake of illustration allowing slippages at different levels similar type of calculated and re-designated as 1P 2P 3P-------For different slippages in mean level, say ∆ = 0.01, 0.02, 0.05, 0.1, 0.2 are computed and summarized below. In case of CUSUM scheme the transition matrix can be obtained by making use of the formulae given in section 4.3.3 These are summarized in the following matrix. In the above tables, if we multiply 3.2with 3.3 it gives cumulative probability of signal by sample 2 is 0.002064. Similarly one can compute the moments with expected values of appropriate functions of run length.

Run Length Properties of Standard Control Charts under Linear Trend with Log Logistic Distribution

The following table 6.1 gives the average run length and other properties of the run length distributions for three basic control charts namely a scheme, W scheme and CUSUM scheme. In these tables ∆ values ranges from 0 to 1. Here we note that the shift will be detected rapidly when the trend is greater than 1 standard error per sample in all charts methods. "Single-sided" schemes "Two-sided" schemes

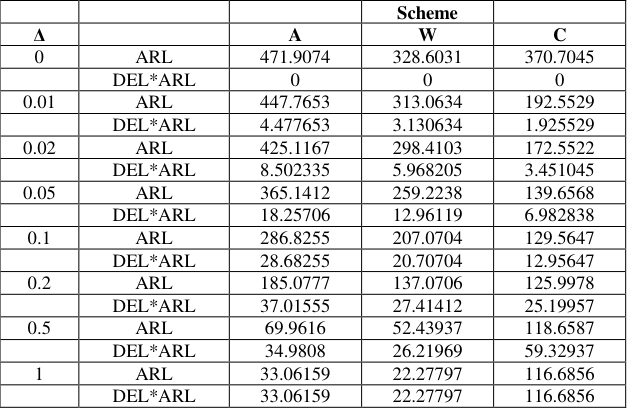

Table 6. 1: Run Length Properties of Control Procedures under Linear Trend
———Scheme—
ΔAWC
0ARL471.9074328.6031370.7045
DEL*ARL000
0.01ARL447.7653313.0634192.5529
DEL*ARL4.4776533.1306341.925529
0.02ARL425.1167298.4103172.5522
DEL*ARL8.5023355.9682053.451045
0.05ARL365.1412259.2238139.6568
DEL*ARL18.2570612.961196.982838
0.1ARL286.8255207.0704129.5647
DEL*ARL28.6825520.7070412.95647
0.2ARL185.0777137.0706125.9978
DEL*ARL37.0155527.4141225.19957
0.5ARL69.961652.43937118.6587
DEL*ARL34.980826.2196959.32937
1ARL33.0615922.27797116.6856
DEL*ARL33.0615922.27797116.6856

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
1: Run Length Properties of Control Procedures under Linear Trend↗ Enlarge
Table 6
1: Run Length Properties of Control Procedures under Linear Trend

1: Run Length Properties of Control Procedures under Linear Trend

Open full-size image ↗
Original paper tableSource PDF · page 6 ↗

In real world, it is frequently unknown whether the process averages μ will change suddenly or gradually. Most of the ARL calculations are based on the one standard deviation schemes under a trend alternative.

If trend is expected in the process average, this prior knowledge will be incorporated in to the design of control procedures while considering sampling intervals.

In the case of Log Logistic distribution suggest that there exists less difference in performance among schemes A, W and C under the linear trend than under step change conditions. Where as in scheme C with Log Logistic distribution the lower ARL for slippage of 0.2 to 0.1 standard errors is noted. It can be observed that the standard C scheme with Log Logistic distribution gives somewhat quicker response over the range 0.015 ≤ ∆ ≤ 0.6 as compared with schemes of A and W schemes over the range 0.03 ≤ ∆ ≤ 0.3. These results are broadly compatible for those relating to step changes, in that, for example with ARL ≅ 6, at ∆ = 0.3 for W and C schemes, the process mean must have shifted above two standard errors by the time the trend is detected. Similarly, for A and C shift is about 3 standard error with ARL ≅ 4.9 at ∆= 0.6. For step changes greater than 2. 5 , it is observed that lower ARL for W when compared with C scheme. The same situation is prevailed in the case of slippage greater than 2.5 . In table 6.

Figures and tables from the paper

Table 4. 1

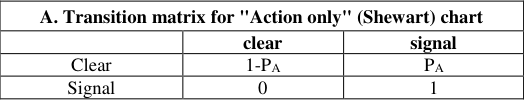

A. Transition matrix for "Action only" (Shewart) chart——
clearsignal
Clear1-PAPA
Signal01

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
1↗ Enlarge
Table 4
1

1

Open full-size image ↗
Original paper tableSource PDF · page 3 ↗
Table 4. 2

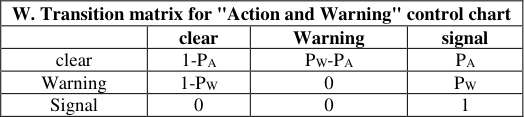

W. Transition matrix for "Action and Warning" control chart———
clearWarningsignal
clear1-PAPW-PAPA
Warning1-PW0PW
Signal001

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
2↗ Enlarge
Table 4
2

2

Open full-size image ↗
Original paper tableSource PDF · page 3 ↗

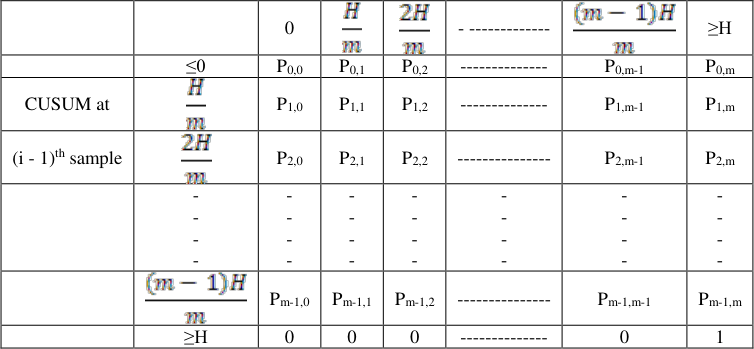

Table 4. 3: C. Transition matrix for CUSUM scheme H, K (m + 1 states)
——0——- -------------—≥H
≤0P0,0P0,1P0,2--------------P0,m-1P0,m
CUSUM atP1,0P1,1P1,2--------------P1,m-1P1,m
(i - 1)th sampleP2,0P2,1P2,2---------------P2,m-1P2,m
- - - -- - - -- - - -- - - -- - - -- - - -- - - -
Pm-1,0Pm-1,1Pm-1,2---------------Pm-1,m-1Pm-1,m
≥H000--------------01

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
3: C. Transition matrix for CUSUM scheme H, K (m + 1 states)↗ Enlarge
Table 4
3: C. Transition matrix for CUSUM scheme H, K (m + 1 states)

3: C. Transition matrix for CUSUM scheme H, K (m + 1 states)

Open full-size image ↗
Original paper tableSource PDF · page 4 ↗

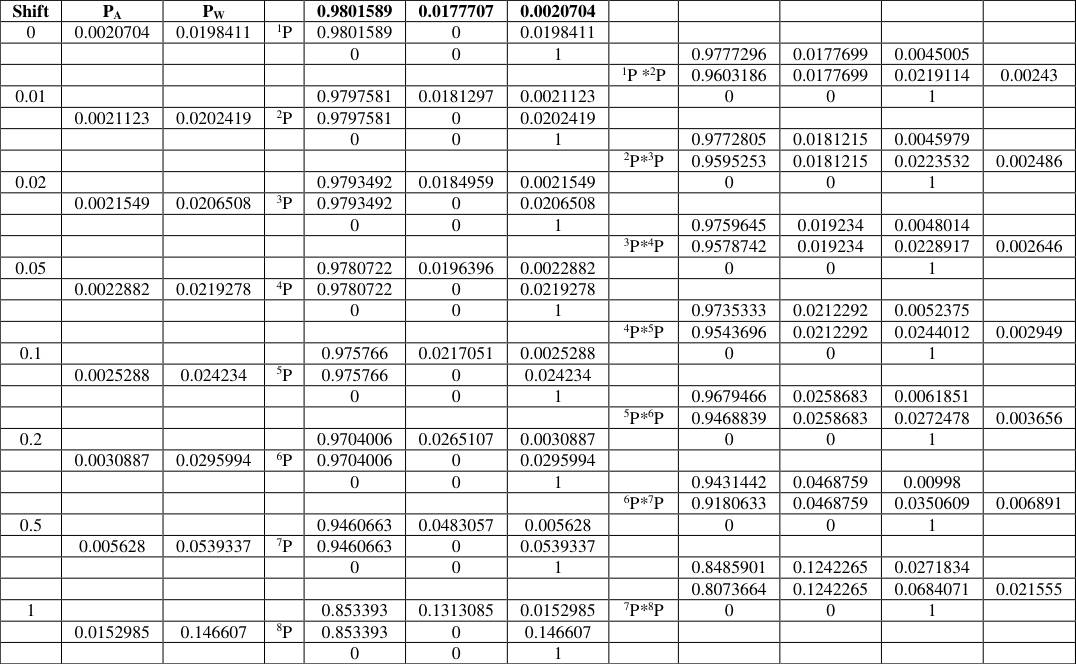

Table 5. 1: Signaling Table for Action & Warning Charts
ShiftP AP W—0.98015890.01777070.0020704—————
00.00207040.01984111P0.980158900.0198411
0010.97772960.01776990.0045005
1P *2P0.96031860.01776990.02191140.00243
0.010.97975810.01812970.0021123001
0.00211230.02024192P0.979758100.0202419
0010.97728050.01812150.0045979
2P*3P0.95952530.01812150.02235320.002486
0.020.97934920.01849590.0021549001
0.00215490.02065083P0.979349200.0206508
0010.97596450.0192340.0048014
3P*4P0.95787420.0192340.02289170.002646
0.050.97807220.01963960.0022882001
0.00228820.02192784P0.978072200.0219278
0010.97353330.02122920.0052375
4P*5P0.95436960.02122920.02440120.002949
0.10.9757660.02170510.0025288001
0.00252880.0242345P0.97576600.024234
0010.96794660.02586830.0061851
5P*6P0.94688390.02586830.02724780.003656
0.20.97040060.02651070.0030887001
0.00308870.02959946P0.970400600.0295994
0010.94314420.04687590.00998
6P*7P0.91806330.04687590.03506090.006891
0.50.94606630.04830570.005628001
0.0056280.05393377P0.946066300.0539337
0010.84859010.12422650.0271834
0.80736640.12422650.06840710.021555
10.8533930.13130850.01529857P*8P001
0.01529850.1466078P0.85339300.146607
001

Table text extracted from the original PDF; superscript letters are shown inline. The original table image is below.

View original table image
1: Signaling Table for Action & Warning Charts↗ Enlarge
Table 5
1: Signaling Table for Action & Warning Charts

1: Signaling Table for Action & Warning Charts

Open full-size image ↗
Original paper tableSource PDF · page 5 ↗

References

14 in the original paper
  1. Brook D, Evans DA. An approach to the probabilitydistribution of Cusum run length, Biomertika, 1972, 59.
  2. Cox MAA. A comparison of Formulas for the design ofcumulative sum control charts. Quality Reliability Engineering. 2009; 25:731-737.
  3. Hinkley DV. Inference about the change point in a sequence ofrandom variables. Biomertika. 1970; 57:1-17.
  4. Hawkins DM. Testing a sequence of observations for a shift inlocation. Journal of the American Statistical Association.1977; 72:180-186.
  5. Johnson NL. Cumulative sum control charts and the WeibullDistribution. Technometrics. 1966; 8:481-491.
  6. James Benneyan C. Performance of Number-Between g-Type Statistical Control Charts for Monitoring Adverse Events. Health Care Managemen Science. 2001; 4:319-336.
  7. Johnson NL. Cumulative sum control charts and the WeibullDistribution. Technometrics. 1966; 8:481-491.
  8. Khan RA. Wald's approximations to the average run length inCUSUM procedures. Statist. Plan. And Inf. 1978; 2:63-77.
  9. Koning AJ, Does RJMM. Cusum charts for preliminary analysis of individual observations. Manuscript, submitted for publication. 1988; 3:133-137.
  10. Moustakides GV. Optimal Stopping Times for detecting changesin distributions. Ann. Statist. 1986; 14:1379-1387.
  11. Page ES. Continuous inspection schemes. Biometrika. 1954; 41:100-114.
  12. Rendtel U. Cusum schemes with variable sampling intervals and sample sizes. Statistical papers, Springer Verlag. 1990; 31:103-118.
  13. Rogerson PA. Formulas for the design of CUSUM quality control charts. Communications in Statistics-Theory and Methods. 2006; 35:373-383.
  14. Sen A, Srivastava MS. On tests for detecting change in mean when variance is unknown. Annuals of the Institute of Statistical Mathematics. 1975; 27:479-486.
